Toyota Avalon Service & Repair Manual: Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT WHEEL RH

Click here

2. REMOVE FRONT FENDER APRON SEAL RH

Click here

3. REMOVE V-BANK COVER SUB-ASSEMBLY

Click here

4. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)

Click here

5. SET NO. 1 CYLINDER TO TDC/COMPRESSION

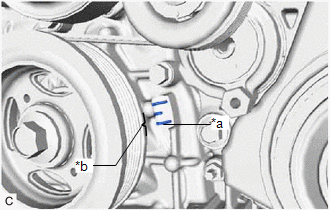

(a) Turn the crankshaft pulley clockwise until its timing mark (cutout) is aligned with the timing mark on the timing chain cover assembly as shown in the illustration.

*a

Timing Mark

*b

Timing Mark (Cutout)

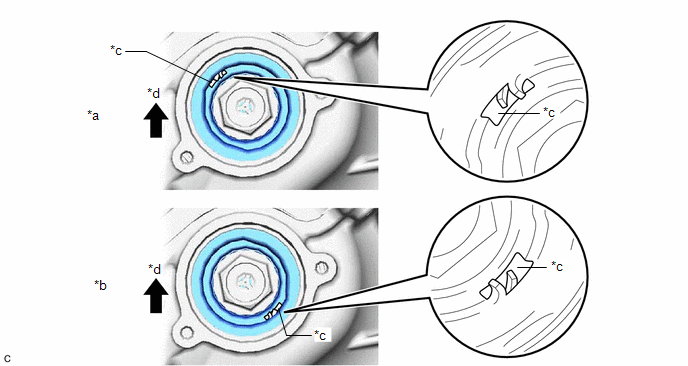

(b) Check that the cutout of the camshaft timing gear assembly is at the top.

*a

Correct

*b

Incorrect

*c

Cutout

*d

Up

HINT:

If the cutout of the camshaft timing gear assembly is not at the top, turn the crankshaft 360° clockwise and align the timing mark (cutout) of the crankshaft pulley with the timing mark on the timing chain cover assembly again.

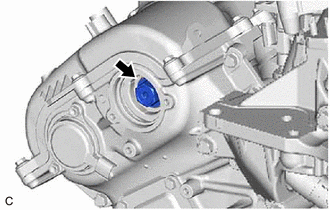

6. REMOVE CAMSHAFT TIMING GEAR BOLT

(a) While holding the crankshaft pulley, remove the camshaft timing gear bolt.

NOTICE:

  • If the camshaft timing gear bolt has been struck or dropped, replace it.
  • Do not turn the crankshaft pulley after removing the camshaft timing gear bolt.
