Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Relay

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT NO. 1 ELECTRONIC FUEL INJECTION MAIN RELAY (EFI-MAIN NO. 1)

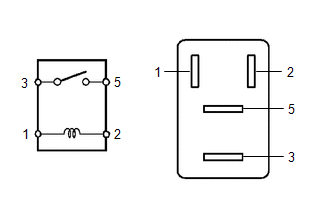

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 5

Battery voltage not applied between terminals 1 and 2

10 kΩ or higher

Battery voltage applied between terminals 1 and 2

Below 1 Ω

If the result is not as specified, replace the No. 1 electronic fuel injection main relay (EFI-MAIN NO. 1).

2. INSPECT NO. 2 ELECTRONIC FUEL INJECTION MAIN RELAY (EFI-MAIN NO. 2)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 5

Battery voltage not applied between terminals 1 and 2

10 kΩ or higher

Battery voltage applied between terminals 1 and 2

Below 1 Ω

If the result is not as specified, replace the No. 2 electronic fuel injection main relay (EFI-MAIN NO. 2).

3. INSPECT NO. 3 ELECTRONIC FUEL INJECTION MAIN RELAY (EFI-MAIN NO. 3)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 5

Battery voltage not applied between terminals 1 and 2

10 kΩ or higher

Battery voltage applied between terminals 1 and 2

Below 1 Ω

If the result is not as specified, replace the No. 3 electronic fuel injection main relay (EFI-MAIN NO. 3).

4. INSPECT INJECTOR RELAY (D INJ)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 5

Battery voltage not applied between terminals 1 and 2

10 kΩ or higher

Battery voltage applied between terminals 1 and 2

Below 1 Ω

If the result is not as specified, replace the injector relay (D INJ).

5. INSPECT NO. 2 IGNITION RELAY (IG2 NO. 1)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 5

Battery voltage not applied between terminals 1 and 2

10 kΩ or higher

Battery voltage applied between terminals 1 and 2

Below 1 Ω

If the result is not as specified, replace the No. 2 ignition relay (IG2 NO. 1).
