Toyota Avalon (XX50) 2019-2022 Owners Manual: Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and outside rear view mirrors inform the driver of the status of the vehicle's various systems.

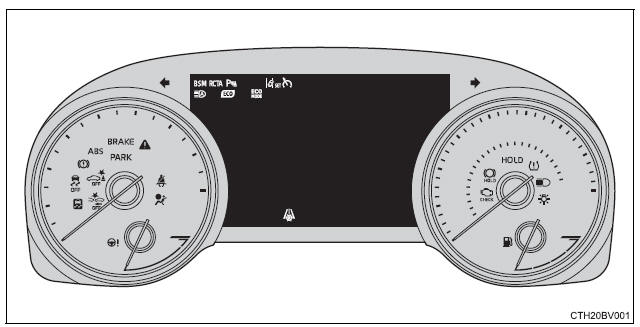

For the purpose of explanation, the following illustrations display all warning lights and indicators illuminated.

Warning lights and indicators

The units used on the meters and some indicators may differ depending on the target region.

Warning lights

Warning lights inform the driver of malfunctions in the indicated vehicle's systems.

Brake system warning light
Brake system warning light
Brake system warning light
High coolant temperature warning light
Charging system warning light
Low engine oil pressure warning light
Malfunction indicator lamp
Malfunction indicator lamp
SRS warning light
ABS warning light
ABS warning light
Brake Override System/ Drive-Start Control/Intelligent Clearance Sonar (if equipped) warning light
Parking brake indicator
Parking brake indicator
Brake hold operated indicator
Electric power steering system warning light
PCS warning light
ICS OFF indicator
LDA indicator
Slip indicator
Low fuel level warning light
Driver's and front passenger's seat belt reminder light
Rear passengers' seat belt reminder lights
Master warning light
Tire pressure warning light

*1: These lights turn on when the engine switch is turned to IGNITION ON mode to indicate that a system check is being performed. They will turn off after the engine is started, or after a few seconds. There may be a malfunction in a system if a light does not come on, or turn off. Have the vehicle inspected by your Toyota dealer.

*2: This light illuminates on the multi-information display.

*3: This light flashes to indicate a malfunction.

*4: This light flashes or illuminates to indicate a malfunction.

*5: This light illuminates on the center panel.

Indicators

The indicators inform the driver of the operating state of the vehicle's various systems.

Turn signal indicator
Headlight indicator
Tail light indicator
Headlight high beam indicator
Automatic High Beam indicator
Eco driving indicator
Parking brake indicator
Parking brake indicator
Brake hold operated indicator
Brake hold standby indicator
Cruise control indicator
Radar cruise control indicator
Cruise control "SET" indicator
PCS warning light
ICS OFF indicator
LDA indicator
LDA indicator
LDA indicator
Slip indicator
VSC OFF indicator
"BSM" indicator
"RCTA" indicator
BSM (Blind Spot Monitor) outside rear view mirror indicators
"AIR BAG ON/OFF" indicator
Security indicator
Intuitive parking assist indicator
Smart key system indicator
"SPORT" indicator
"SPORT S" indicator
"SPORT S+" indicator
"CUSTOM" indicator
"ECO MODE" indicator
Low outside temperature indicator

*1: These lights turn on when the engine switch is turned to IGNITION ON mode to indicate that a system check is being performed. They will turn off after the engine is started, or after a few seconds. There may be a malfunction in a system if a light does not come on, or turn off. Have the vehicle inspected by your Toyota dealer.

*2: This light illuminates on the multi-information display.

*3: This light does not turn on when the system is disabled.

*4: This light turns on when the system is off.

*5: This light flashes to indicate that the system is operating.

*6: These indicators will illuminate in the following situations to indicate that the system initial check is being performed:

  • When the BSM function or RCTA function is enabled and the engine switch is turned to IGNITION ON mode.
  • When the engine switch is in IGNITION ON mode and the BSM function is enabled.
  • When the engine switch is in IGNITION ON mode and the RCTA function is enabled. (At this time, a buzzer will also sound.) The indicators will turn off after a few seconds. If the indicators do not illuminate or turn off, or if a buzzer does not sound when the RCTA function is enabled, the system may be malfunctioning. Have the vehicle inspected by your Toyota dealer.

*7: This light illuminates on the outside rear view mirrors.

*8: This light illuminates on the center panel.

*9: When the outside temperature is approximately 37ºF (3ºC) or lower, this indicator will flash for approximately 10 seconds, then stay on.

WARNING

■If a safety system warning light does not come on Should a safety system light such as the ABS and SRS warning lights not come on when you start the engine, this could mean that these systems are not available to help protect you in an accident, which could result in death or serious injury. Have the vehicle inspected by your Toyota dealer immediately if this occurs.

    Instrument cluster

    Gauges and meters
