Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Camshaft Position Sensor "A" Bank 1 or Single Sensor Circuit Short to Ground (P034011,P034015,P034511,P034515)

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Engine / 2gr-fks Engine Control / Sfi System / Camshaft Position Sensor "A" Bank 1 or Single Sensor Circuit Short to Ground (P034011,P034015,P034511,P034515)

DESCRIPTION

The VVT sensor (for intake camshaft) (VV1, VV2 signal) consists of a magnet and MRE (Magneto Resistance Element).

The intake camshaft has a timing rotor for the VVT sensor. When the intake camshaft rotates, changes occur in the air gaps between the timing rotor and MRE, which affects the magnetic field. As a result, the resistance of the MRE material fluctuates. The VVT sensor converts the camshaft rotation data to pulse signals, uses the pulse signals to determine the camshaft angle, and sends it to the ECM. Then the ECM uses this data to control fuel injection duration, injection timing and the Variable Valve Timing (VVT) system.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P034011

Camshaft Position Sensor "A" Bank 1 or Single Sensor Circuit Short to Ground

The VVT sensor (for intake camshaft of bank 1) output voltage is less than 0.3 V for 4 seconds or more (1 trip detection logic).

  • Open or short in VVT sensor (for intake camshaft of bank 1) circuit
  • VVT sensor (for intake camshaft of bank 1)
  • ECM

Comes on

DTC stored

SAE Code: P0342

P034015

Camshaft Position Sensor "A" Bank 1 or Single Sensor Circuit Short to Battery or Open

The VVT sensor (for intake camshaft of bank 1) output voltage is higher than 4.7 V for 4 seconds or more (1 trip detection logic).

  • Open or short in VVT sensor (for intake camshaft of bank 1) circuit
  • VVT sensor (for intake camshaft of bank 1)
  • ECM

Comes on

DTC stored

SAE Code: P0343

P034511

Camshaft Position Sensor "A" Bank 2 Circuit Short to Ground

The VVT sensor (for intake camshaft of bank 2) output voltage is less than 0.3 V for 4 seconds or more (1 trip detection logic).

  • Open or short in VVT sensor (for intake camshaft of bank 2) circuit
  • VVT sensor (for intake camshaft of bank 2)
  • ECM

Comes on

DTC stored

SAE Code: P0347

P034515

Camshaft Position Sensor "A" Bank 2 Circuit Short to Battery or Open

The VVT sensor (for intake camshaft of bank 2) output voltage is higher than 4.7 V for 4 seconds or more (1 trip detection logic).

  • Open or short in VVT sensor (for intake camshaft of bank 2) circuit
  • VVT sensor (for intake camshaft of bank 2)
  • ECM

Comes on

DTC stored

SAE Code: P0348

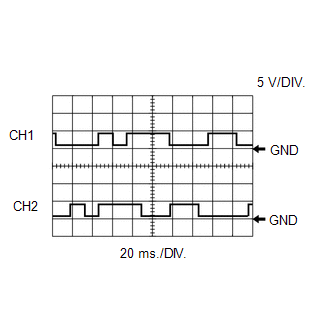

  • Reference: Inspection using an oscilloscope.

    HINT:

    • The correct waveform is as shown.
    • VV1 stands for the VVT sensor (for intake camshaft of bank 1) signal, and VV2 stands for the VVT sensor (for intake camshaft of bank 2) signal.

    ECM Terminal Name

    CH1: Between VV1+ and VV1-

    CH2: Between VV2+ and VV2-

    Tester Range

    5 V/DIV., 20 ms./DIV.

    Condition

    Idling

MONITOR DESCRIPTION

If the output voltage transmitted by the VVT sensor (for intake camshaft) remains low or high the rotation of the camshaft and the crankshaft is not synchronized, the ECM interprets this as a malfunction in the sensor circuit illuminates the MIL and stores a DTC.

MONITOR STRATEGY

Related DTCs

P0342: VVT sensor (bank 1) range check (low voltage)

P0343: VVT sensor (bank 1) range check (high voltage)

P0347: VVT sensor (bank 2) range check (low voltage)

P0348: VVT sensor (bank 2) range check (high voltage)

Required Sensors/Components (Main)

VVT sensor (for intake camshaft)

Required Sensors/Components (Related)

Crankshaft position sensor

Frequency of Operation

Continuous

Duration

4 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

P0342 and P0343: VVT Sensor (Bank 1) Range Check (Low Voltage, High Voltage)

All of the following conditions are met

-

Starter

Off

Engine switch

On (IG)

Time after engine switch off to on (IG)

2 seconds or more

Battery voltage

8 V or higher

VVT sensor verify pulse input fail (P0340)

Not detected

P0347 and P0348: VVT Sensor (Bank 2) Range Check (Low Voltage, High Voltage)

All of the following conditions are met

-

Starter

Off

Engine switch

On (IG)

Time after engine switch off to on (IG)

2 seconds or more

Battery voltage

8 V or higher

VVT sensor verify pulse input fail (P0345)

Not detected

TYPICAL MALFUNCTION THRESHOLDS

P0342 and P0347: VVT Sensor Range Check (Low Voltage)

VVT sensor voltage

Less than 0.3 V

P0343 and P0348: VVT Sensor Range Check (High Voltage)

VVT sensor voltage

Higher than 4.7 V

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG).
  3. Turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the engine switch off and wait for at least 30 seconds.
  6. Turn the engine switch on (IG) [A].
  7. Turn the Techstream on.
  8. Wait for 5 seconds or more [B].
  9. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
  10. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  12. Input the DTC: P034011, P034015, P034511 or P034515.
  13. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • [A] to [C]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

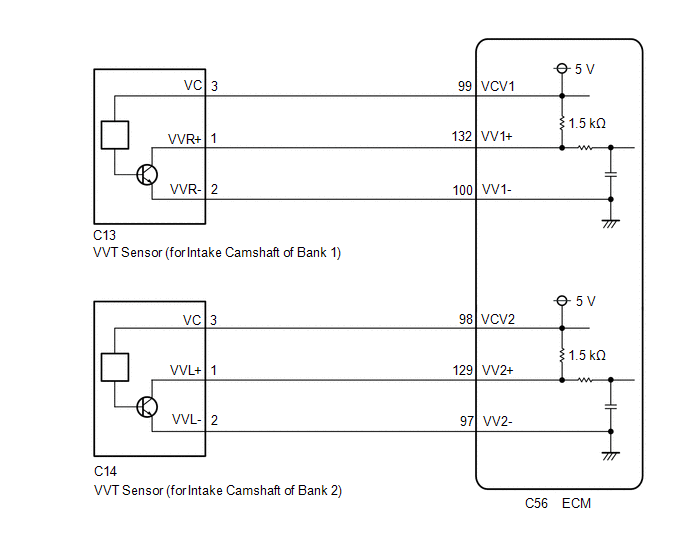

WIRING DIAGRAM

CAUTION / NOTICE / HINT

HINT:

  • Bank 1 refers to the bank that includes the No. 1 cylinder*.

    *: The No. 1 cylinder is the cylinder which is farthest from the transaxle.

  • Bank 2 refers to the bank that does not include the No. 1 cylinder.
  • Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR

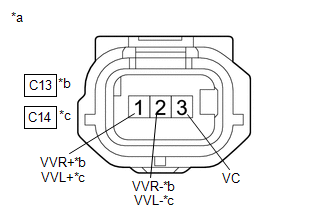

*a

Front view of wire harness connector

(to VVT Sensor (for Intake Camshaft))

*b

Bank 1

*c

Bank 2

HINT:

Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.

(a) Disconnect the VVT sensor (for intake camshaft) connector.

(b) Turn the engine switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

C13-3 (VC) - Body ground

Engine switch on (IG)

4.5 to 5.5 V

C14-3 (VC) - Body ground

Engine switch on (IG)

4.5 to 5.5 V

C13-1 (VVR+) - Body ground

Engine switch on (IG)

3.0 to 5.0 V

C14-1 (VVL+) - Body ground

Engine switch on (IG)

3.0 to 5.0 V

(d) Turn the engine switch off and wait for at least 30 seconds.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C13-3 (VC) - C13-1 (VVR+)

Engine switch off

1.425 to 1.575 kΩ

C14-3 (VC) - C14-1 (VVL+)

Engine switch off

1.425 to 1.575 kΩ

C13-2 (VVR-) - Body ground

Always

Below 1 Ω

C14-2 (VVL-) - Body ground

Always

Below 1 Ω

OK

REPLACE VVT SENSOR (FOR INTAKE CAMSHAFT)

NG

2.

CHECK HARNESS AND CONNECTOR (VVT SENSOR (FOR INTAKE CAMSHAFT) - ECM)

(a) Disconnect the VVT sensor (for intake camshaft) connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C13-1 (VVR+) - C56-132 (VV1+)

Always

Below 1 Ω

C13-2 (VVR-) - C56-100 (VV1-)

Always

Below 1 Ω

C13-3 (VC) - C56-99 (VCV1)

Always

Below 1 Ω

C14-1 (VVL+) - C56-129 (VV2+)

Always

Below 1 Ω

C14-2 (VVL-) - C56-97 (VV2-)

Always

Below 1 Ω

C14-3 (VC) - C56-98 (VCV2)

Always

Below 1 Ω

C13-1 (VVR+) or C56-132 (VV1+) - Body ground and other terminals

Always

10 kΩ or higher

C13-2 (VVR-) or C56-100 (VV1-) - Body ground and other terminals

Always

10 kΩ or higher

C13-3 (VC) or C56-99 (VCV1) - Body ground and other terminals

Always

10 kΩ or higher

C14-1 (VVL+) or C56-129 (VV2+) - Body ground and other terminals

Always

10 kΩ or higher

C14-2 (VVL-) or C56-97 (VV2-) - Body ground and other terminals

Always

10 kΩ or higher

C14-3 (VC) or C56-98 (VCV2) - Body ground and other terminals

Always

10 kΩ or higher

OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
