COMPONENTS

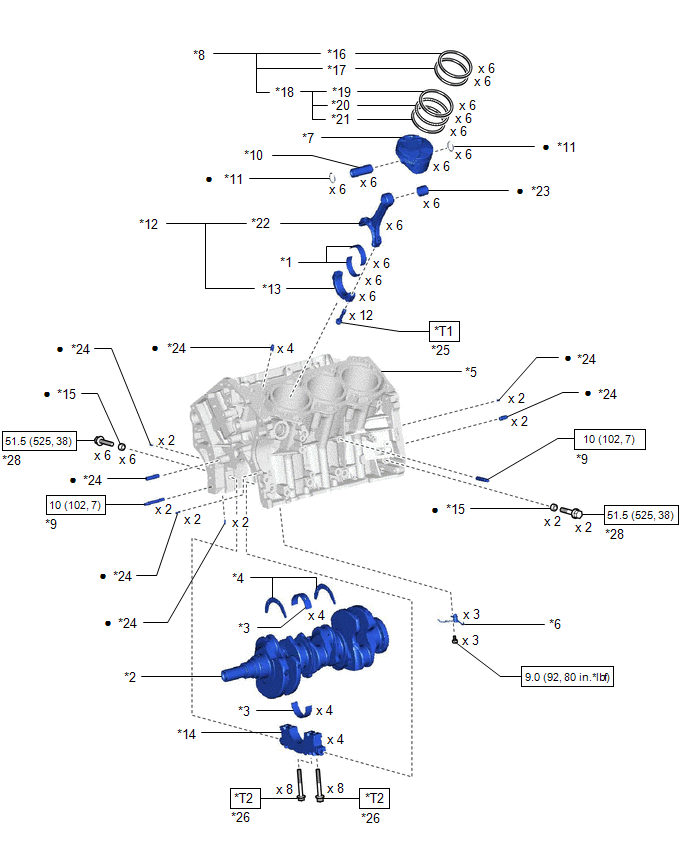

ILLUSTRATION

*1

CONNECTING ROD BEARING

*2

CRANKSHAFT

*3

CRANKSHAFT BEARING

*4

CRANKSHAFT THRUST WASHER SET

*5

CYLINDER BLOCK SUB-ASSEMBLY

*6

NO. 1 OIL NOZZLE SUB-ASSEMBLY

*7

PISTON

*8

PISTON RING SET

*9

STUD BOLT

*10

PISTON PIN

*11

PISTON PIN HOLE SNAP RING

*12

CONNECTING ROD SUB-ASSEMBLY

*13

CONNECTING ROD CAP

*14

CRANKSHAFT BEARING CAP

*15

SEAL WASHER

*16

NO. 1 COMPRESSION RING

*17

NO. 2 COMPRESSION RING

*18

OIL RING

*19

UPPER SIDE RAIL

*20

OIL RING EXPANDER

*21

LOWER SIDE RAIL

*22

CONNECTING ROD

*23

CONNECTING ROD SMALL END BUSH

*24

STRAIGHT PIN

*25

CONNECTING ROD BOLT

*26

CRANKSHAFT BEARING CAP SET BOLT

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

*T1

1st: 24.5 (250, 18)

2nd: Turn 90°

*T2

1st: 61 (622, 45)

2nd: Turn 90°
