Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL TIMING CHAIN CASE OIL SEAL

(a) Apply MP grease to the lip of a new timing chain case oil seal.

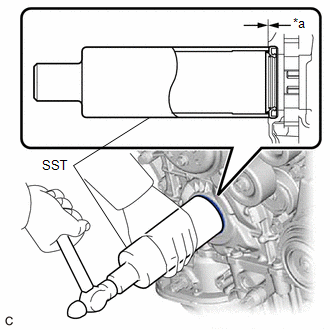

*a

Oil Seal Protrusion Height

(b) Using SST and a hammer, tap in the timing chain case oil seal until its surface is flush with the timing chain cover assembly edge.

SST: 09316-60012

09316-00011

Oil Seal Protrusion Height:

0 to 1.0 mm (0 to 0.0394 in.)

NOTICE:

  • Keep the lip free from foreign matter.
  • Do not tap in the timing chain case oil seal at an angle.

2. INSTALL CRANKSHAFT PULLEY

(a) Align the pulley set key with the key groove of the crankshaft pulley.

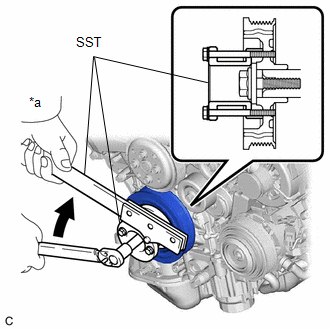

(b) Using SST to hold the crankshaft pulley in place, tighten the crankshaft pulley set bolt.

*a

Hold

Turn

SST: 09213-70011

09213-70020

SST: 09330-00021

Torque:

260 N·m {2651 kgf·cm, 192 ft·lbf}

3. INSTALL V-RIBBED BELT

Click here

4. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE

Click here
