COMPONENTS

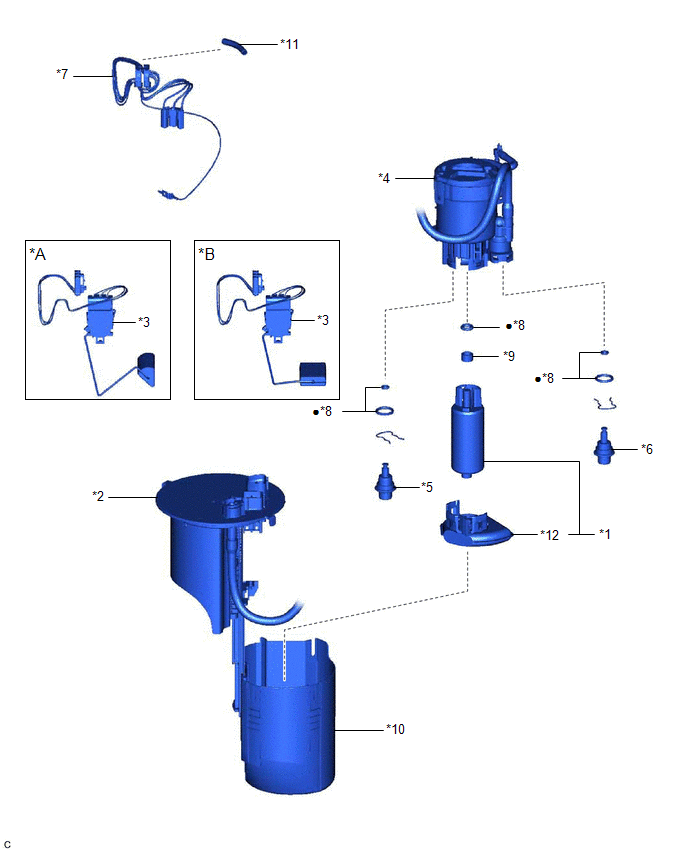

ILLUSTRATION

*A

Type A

*B

Type B

*1

FUEL PUMP

*2

FUEL SUCTION PLATE SUB-ASSEMBLY

*3

FUEL SENDER GAUGE ASSEMBLY

*4

FUEL FILTER

*5

FUEL MAIN VALVE ASSEMBLY (for Low Pressure)

*6

FUEL MAIN VALVE ASSEMBLY (for High Pressure)

*7

FUEL PUMP HARNESS

*8

O-RING

*9

FUEL PUMP SPACER

*10

FUEL SUB-TANK

*11

HARNESS PROTECTOR

*12

SUCTION FILTER

●

Non-reusable part

-

-
    Fuel Main Valve

    Installation
