REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel main valve assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*: When performing learning using the Techstream.

Click here

Battery terminal is disconnected/reconnected

Perform steering sensor zero point calibration

Lane Departure Alert System (w/ Steering Control)

Pre-collision System

Intelligent Clearance Sonar System*

Lighting System (for Gasoline Model with Cornering Light)

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Replacement of fuel pump

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

CAUTION:

  • Never perform work on fuel system components near any possible ignition sources.
  • Vaporized fuel could ignite, resulting in a serious accident.
  • Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.
  • Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

PROCEDURE

1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click here

2. REMOVE FUEL SENDER GAUGE ASSEMBLY

Click here

3. REMOVE FUEL PUMP

Click here

4. REMOVE FUEL MAIN VALVE ASSEMBLY

(a) Remove the fuel main valve assembly (for Low Pressure).

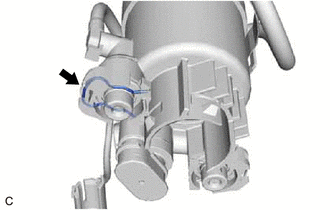

(1) Remove the clip from the fuel filter.

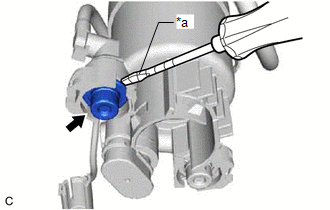

(2) Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.

NOTICE:

  • Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter.
  • Do not damage the fuel filter.

*a

Protective Tape

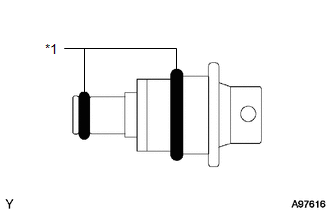

(3) Remove the 2 O-rings from the fuel main valve assembly.

*1

O-ring

(b) Remove the fuel main valve assembly (for High Pressure).

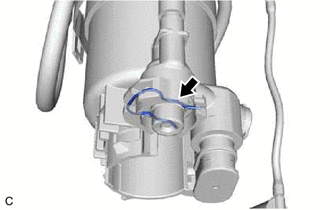

(1) Remove the clip from the fuel filter.

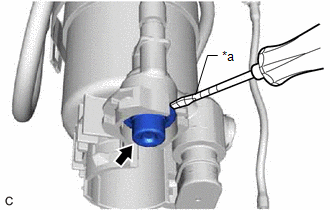

(2) Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.

NOTICE:

  • Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter.
  • Do not damage the fuel filter.

*a

Protective Tape

(3) Remove the 2 O-rings from the fuel main valve assembly.

*1

O-ring
