Toyota Avalon Service & Repair Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear brake flexible hose removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*1: for HV Model

*2: When performing learning using the Techstream.

Click here

Auxiliary battery terminal is disconnected/reconnected*1

Perform steering sensor zero point calibration

Lane Departure Alert System (w/ Steering Control)

Pre-collision System

Intelligent Clearance Sonar System*2

Lighting System (for HV Model with Cornering Light)

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

NOTICE:

If both left and right rear flexible hoses are disconnected at the same time, be sure to place an identification mark on each hose to indicate its installation position.

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION (for HV Model)

NOTICE:

After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click here

2. DISABLE BRAKE CONTROL (for HV Model)

Click here

3. REMOVE REAR WHEEL

Click here

4. DRAIN BRAKE FLUID

NOTICE:

If brake fluid leaks onto any painted surface, immediately wash it off.

5. REMOVE REAR FLEXIBLE HOSE

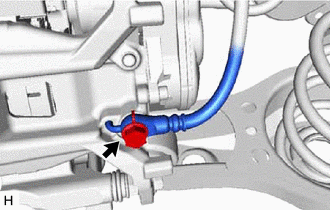

(a) Remove the union bolt and gasket, and disconnect the rear flexible hose from the rear disc brake cylinder assembly.

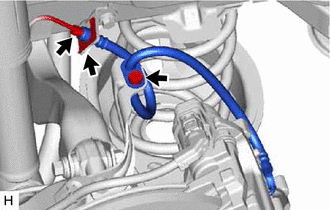

(b) Remove the bolt and separate the rear flexible hose from the rear flexible hose bracket.

(c) Using a union nut wrench, disconnect the brake line while holding the rear flexible hose with a wrench.

NOTICE:

  • Do not kink or damage the brake line.
  • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

(d) Remove the clip and rear flexible hose from the vehicle body.

    Installation

    Rear Disc Brake Pad
