COMPONENTS

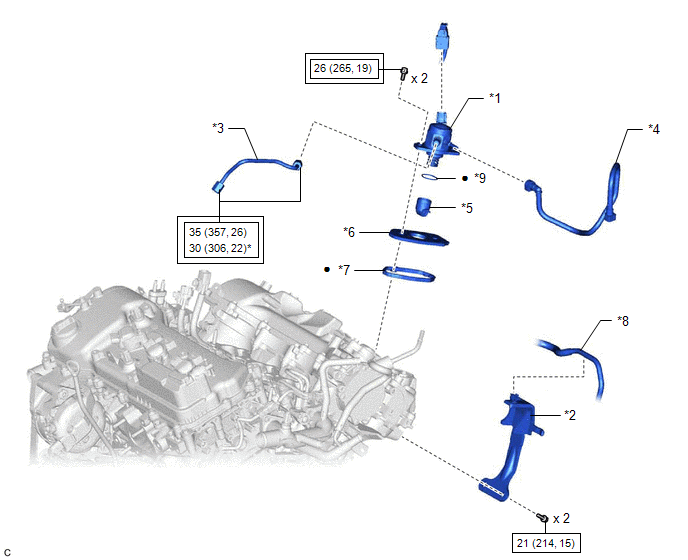

ILLUSTRATION

*1

FUEL PUMP ASSEMBLY

*2

FUEL PUMP PROTECTOR

*3

NO. 1 FUEL PIPE SUB-ASSEMBLY

*4

NO. 2 FUEL TUBE SUB-ASSEMBLY

*5

FUEL PUMP LIFTER ASSEMBLY

*6

FUEL PUMP LIFTER GUIDE

*7

FUEL PUMP SPACER GASKET

*8

FUEL TUBE SUB-ASSEMBLY

*9

O-RING

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with a union nut wrench

●

Non-reusable part
    Fuel Pump(for High Pressure)

    Inspection
