Toyota Avalon Service & Repair Manual: Components

COMPONENTS

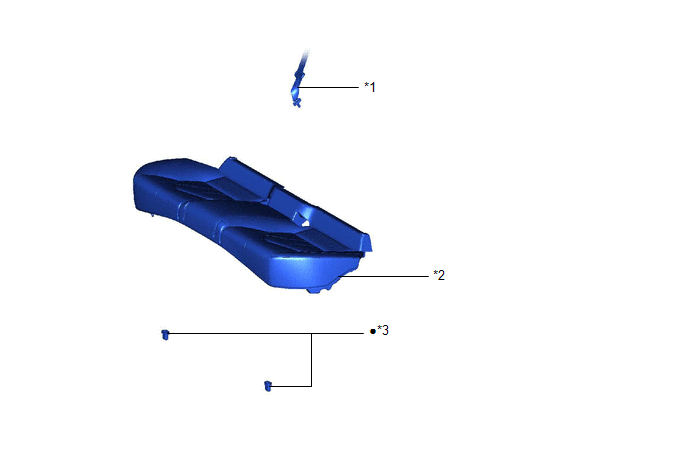

ILLUSTRATION

*1

REAR CENTER SEAT OUTER BELT ASSEMBLY

*2

REAR SEAT CUSHION ASSEMBLY

*3

REAR SEAT CUSHION LOCK HOOK

-

-

Non-reusable part

-

-

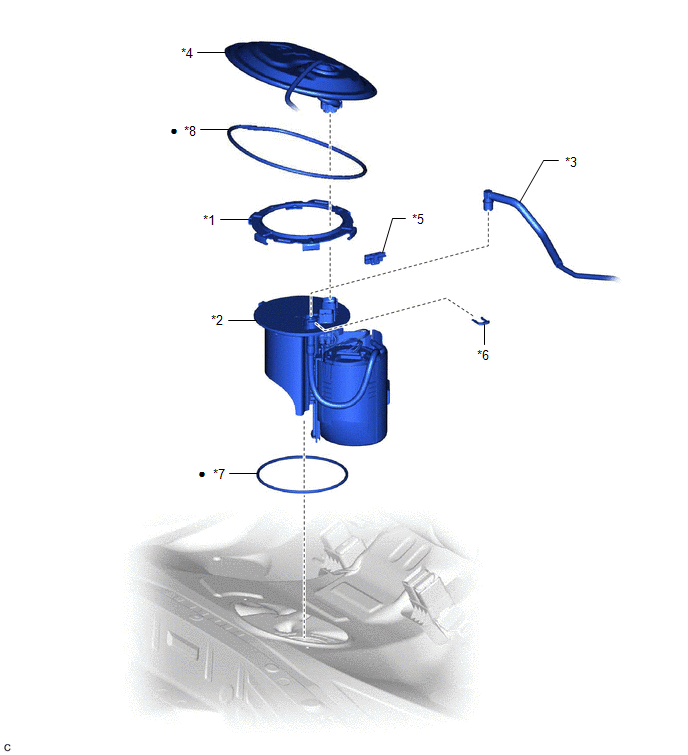

ILLUSTRATION

*1

FUEL PUMP GAUGE RETAINER

*2

FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

*3

FUEL TANK MAIN TUBE SUB-ASSEMBLY

*4

REAR FLOOR SERVICE HOLE COVER

*5

NO. 1 FUEL TUBE CLAMP

*6

TUBE JOINT CLIP

*7

FUEL SUCTION TUBE SET GASKET

*8

BUTYL TAPE

Non-reusable part

-

-

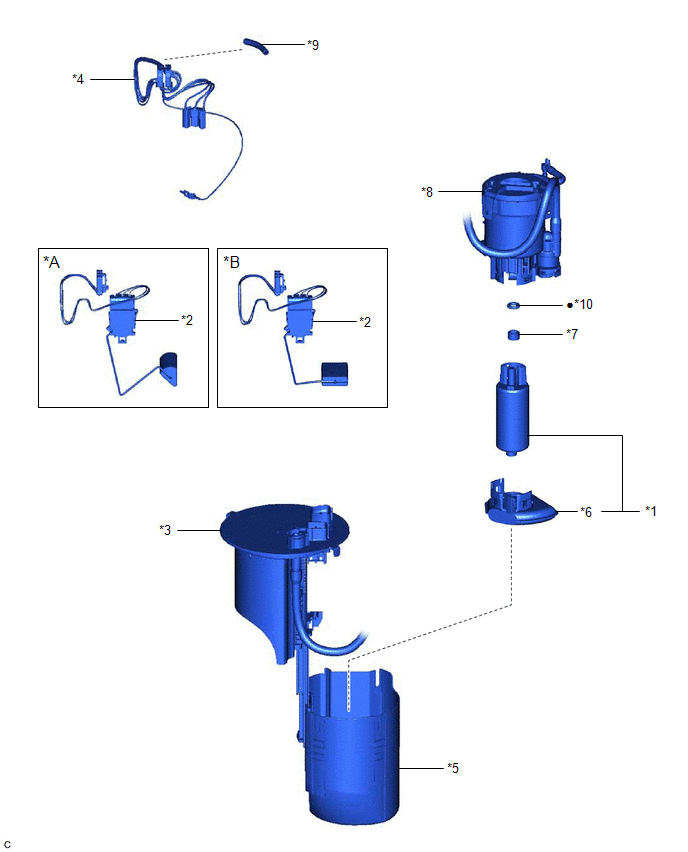

ILLUSTRATION

*A

Type A

*B

Type B

*1

FUEL PUMP

*2

FUEL SENDER GAUGE ASSEMBLY

*3

FUEL SUCTION PLATE SUB-ASSEMBLY

*4

FUEL PUMP HARNESS

*5

FUEL SUB-TANK

*6

SUCTION FILTER

*7

FUEL PUMP SPACER

*8

FUEL FILTER

*9

HARNESS PROTECTOR

*10

O-RING

Non-reusable part

-

-

    Fuel Pump

    Disassembly
