COMPONENTS

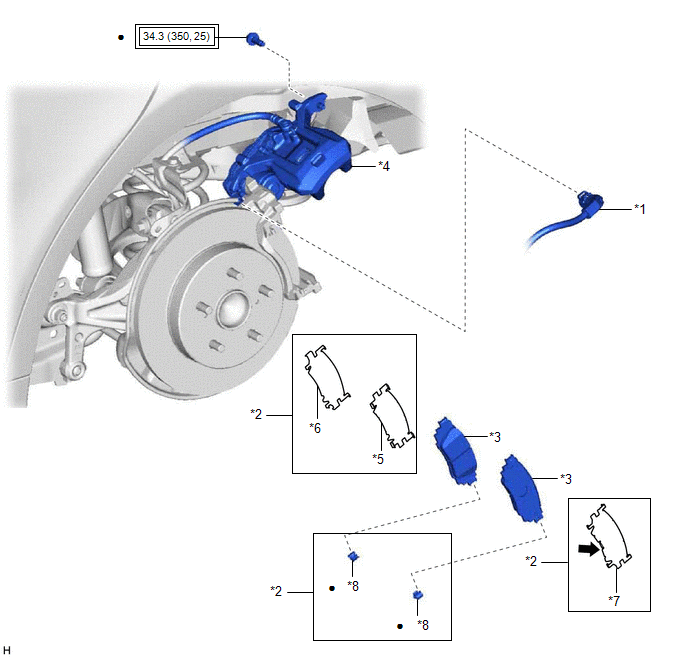

ILLUSTRATION

*1	NO. 2 PARKING BRAKE WIRE ASSEMBLY	*2	REAR DISC BRAKE ANTI-SQUEAL SHIM KIT
*3	REAR DISC BRAKE PAD	*4	REAR DISC BRAKE CYLINDER ASSEMBLY
*5	REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM	*6	REAR NO. 2 DISC BRAKE ANTI-SQUEAL SHIM
*7	REAR DISC BRAKE ANTI-SQUEAL SHIM	*8	REAR DISC BRAKE PAD WEAR INDICATOR PLATE
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	●	Non-reusable part
	Disc brake grease	-	-
