COMPONENTS

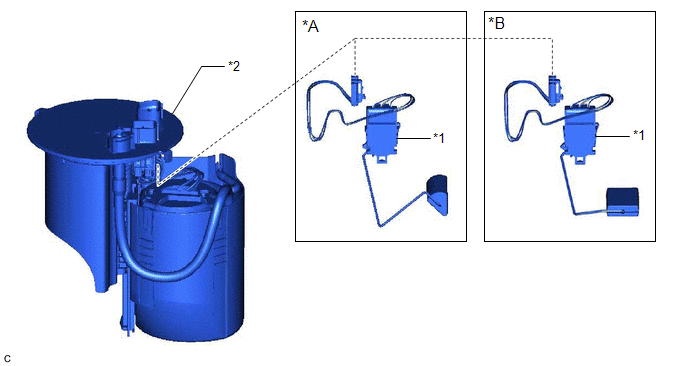

ILLUSTRATION

*A	Type A	*B	Type B
*1	FUEL SENDER GAUGE ASSEMBLY	*2	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
