Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Parts Location

PARTS LOCATION

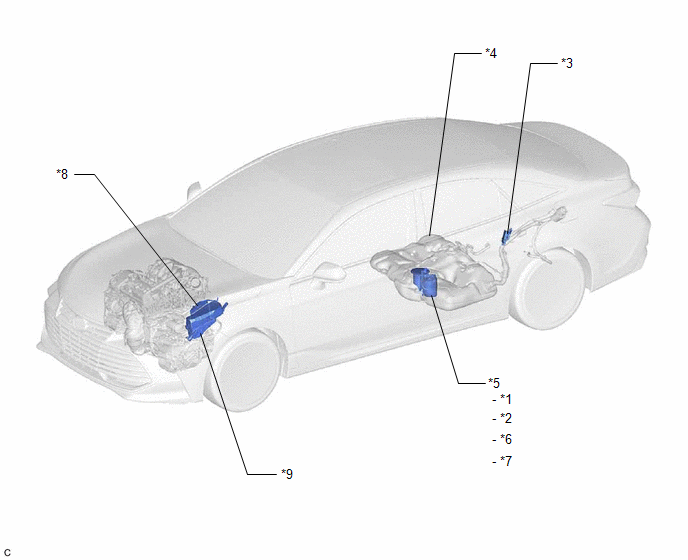

ILLUSTRATION

*1

FUEL SENDER GAUGE ASSEMBLY

*2

FUEL PUMP (for Low Pressure)

*3

FUEL PUMP CONTROL ECU

*4

FUEL TANK ASSEMBLY

*5

FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

*6

FUEL MAIN VALVE ASSEMBLY (for Low Pressure)

*7

FUEL MAIN VALVE ASSEMBLY (for High Pressure)

*8

ECM

*9

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- EFI-MAIN NO. 2 RELAY

- EFI-MAIN NO. 2 FUSE

- INJ FUSE

-

-

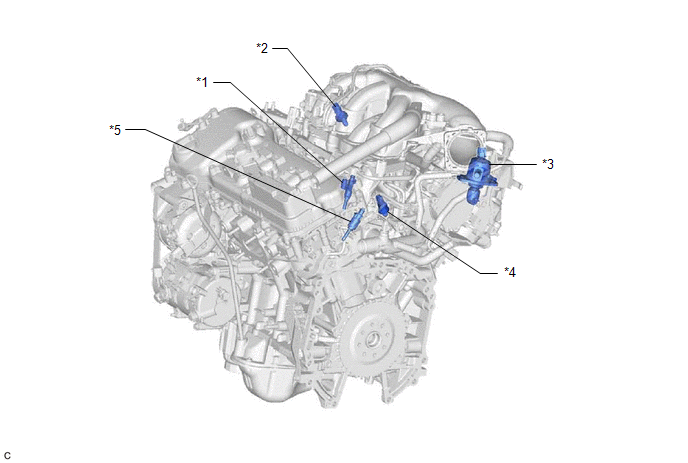

ILLUSTRATION

*1

FUEL INJECTOR ASSEMBLY (for Port Injection)

*2

FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY) (for Low Pressure)

*3

FUEL PUMP ASSEMBLY (for High Pressure)

*4

FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH) (for High Pressure)

*5

FUEL INJECTOR ASSEMBLY (for Direct Injection)

-

-
