Toyota Avalon Service & Repair Manual: Fuel Tank Filler Pipe Protector

Toyota Avalon Service & Repair Manual / Engine / 2gr-fks Fuel / Fuel Tank Filler Pipe Protector

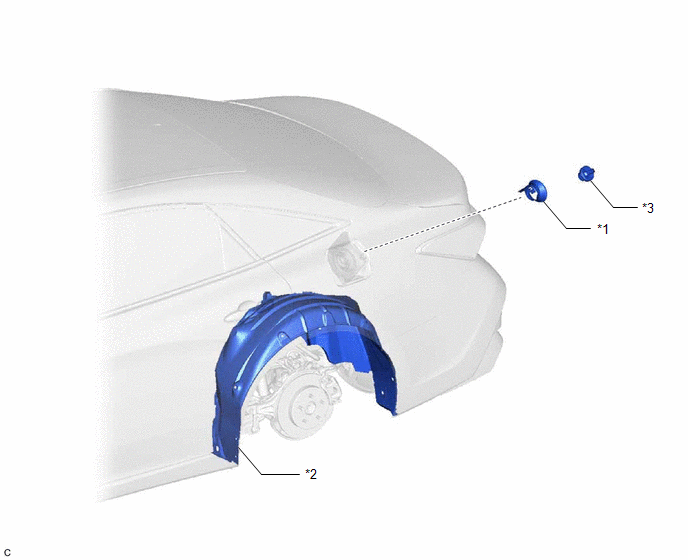

Components

COMPONENTS

ILLUSTRATION

*1

NO. 2 FUEL TANK FILLER PIPE PROTECTOR

*2

REAR WHEEL HOUSE LINER LH

*3

FUEL TANK CAP ASSEMBLY

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 2 FUEL TANK FILLER PIPE PROTECTOR

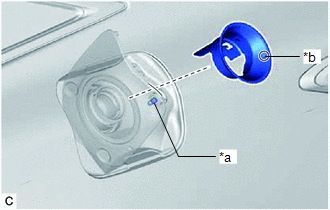

(a) While aligning the matchmark of the No. 2 fuel tank filler pipe protector with the shaft of the fuel lid lock with motor assembly, install the No. 2 fuel tank filler pipe protector.

*a

Shaft

*b

Matchmark

(b) Return the rear wheel house liner LH to its original position and install the screws and clips.

(c) Install the fuel tank cap assembly.

2. INSTALL REAR WHEEL LH

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE REAR WHEEL LH

Click here

2. REMOVE NO. 2 FUEL TANK FILLER PIPE PROTECTOR

(a) Remove the fuel tank cap assembly.

(b) Remove all necessary screws and clips and pull back the rear wheel house liner LH to the extent that the fuel tank filler pipe sub-assembly can be accessed.

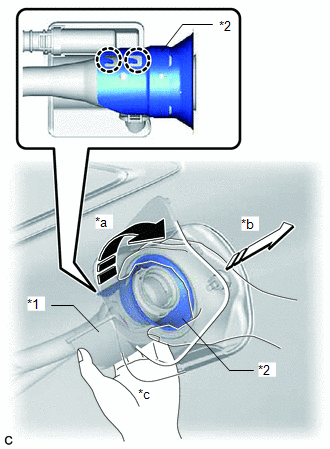

(c) While holding the fuel tank filler pipe sub-assembly, disengage the claws of the No. 2 fuel tank filler pipe protector and pull the No. 2 fuel tank filler pipe protector off of the fuel tank filler pipe sub-assembly.

*1

Fuel Tank Filler Pipe Sub-assembly

*2

No. 2 Fuel Tank Filler Pipe Protector

*a

Pull up

*b

Pull off

*c

Hold

    System Diagram

    Fuel Tank
