COMPONENTS

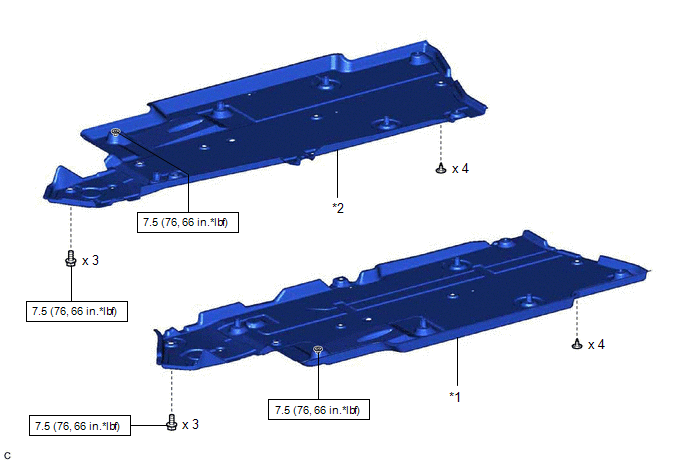

ILLUSTRATION

*1

FRONT FLOOR COVER LH

*2

FRONT FLOOR COVER RH

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

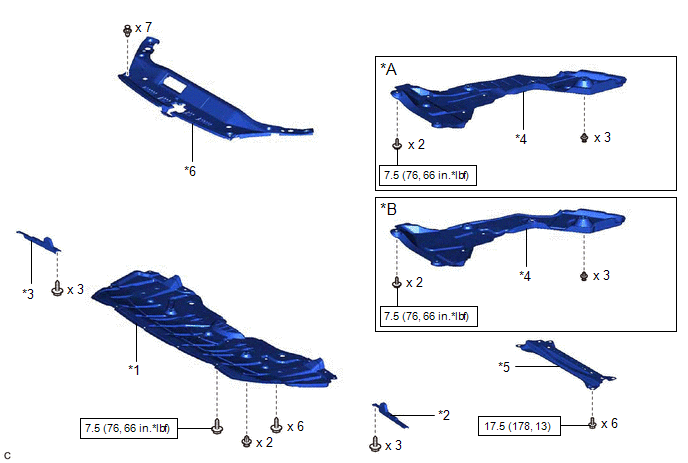

ILLUSTRATION

*A

Type A

*B

Type B

*1

NO. 1 ENGINE UNDER COVER

*2

FRONT WHEEL OPENING EXTENSION PAD LH

*3

FRONT WHEEL OPENING EXTENSION PAD RH

*4

REAR ENGINE UNDER COVER RH

*5

BODY MOUNTING PLATE

*6

COOL AIR INTAKE DUCT SEAL

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

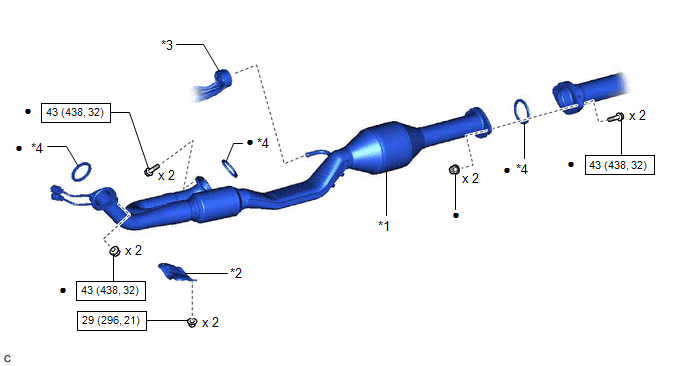

ILLUSTRATION

*1

FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

*2

NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side)

*3

EXHAUST PIPE SUPPORT

*4

GASKET

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

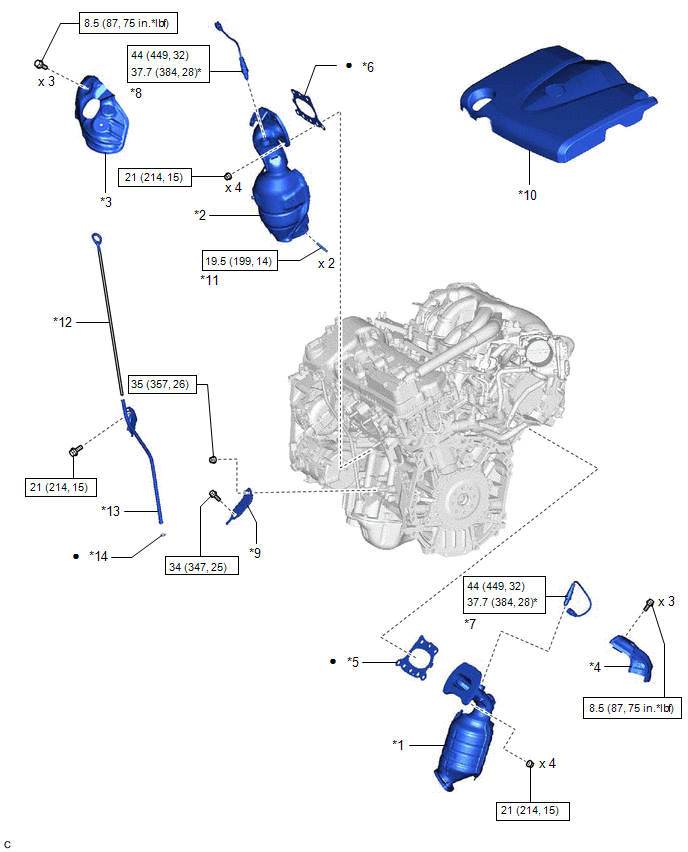

ILLUSTRATION

*1

EXHAUST MANIFOLD ASSEMBLY RH (TWC: Front Catalyst)

*2

EXHAUST MANIFOLD ASSEMBLY LH (TWC: Front Catalyst)

*3

NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

*4

NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

*5

EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1)

*6

EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2)

*7

AIR FUEL RATIO SENSOR (for Bank 1)

*8

AIR FUEL RATIO SENSOR (for Bank 2)

*9

NO. 2 MANIFOLD STAY

*10

V-BANK COVER SUB-ASSEMBLY

*11

STUD BOLT

*12

ENGINE OIL LEVEL DIPSTICK

*13

ENGINE OIL LEVEL DIPSTICK GUIDE

*14

ENGINE OIL LEVEL DIPSTICK GUIDE O-RING

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with SST

Non-reusable part

-

-

    Exhaust Manifold
