Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

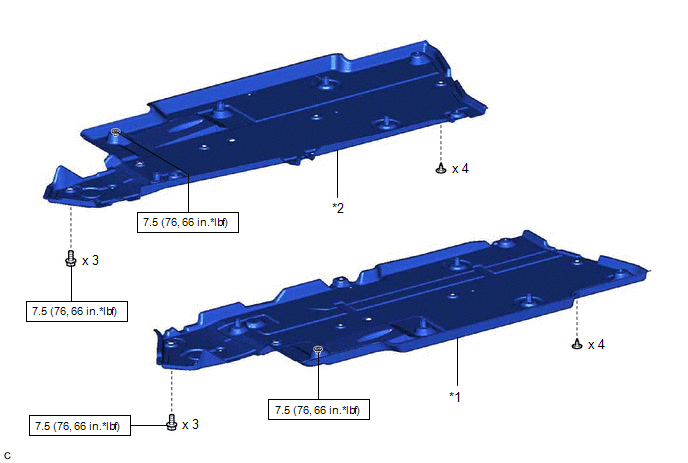

ILLUSTRATION

*1

FRONT FLOOR COVER LH

*2

FRONT FLOOR COVER RH

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

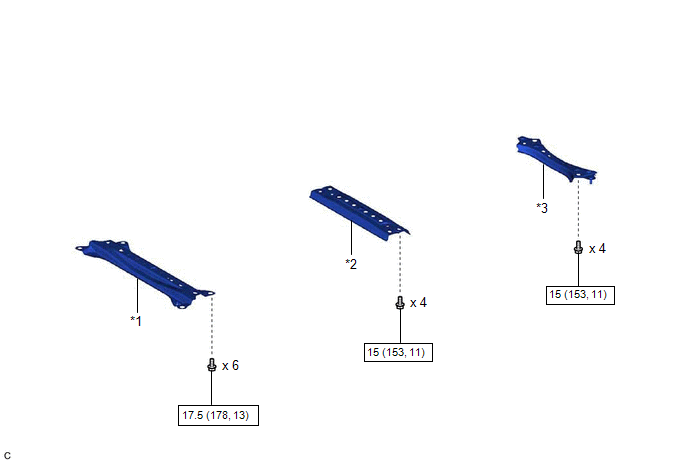

ILLUSTRATION

*1

BODY MOUNTING PLATE

*2

CENTER FLOOR CROSSMEMBER BRACE

*3

FRONT CENTER FLOOR BRACE

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

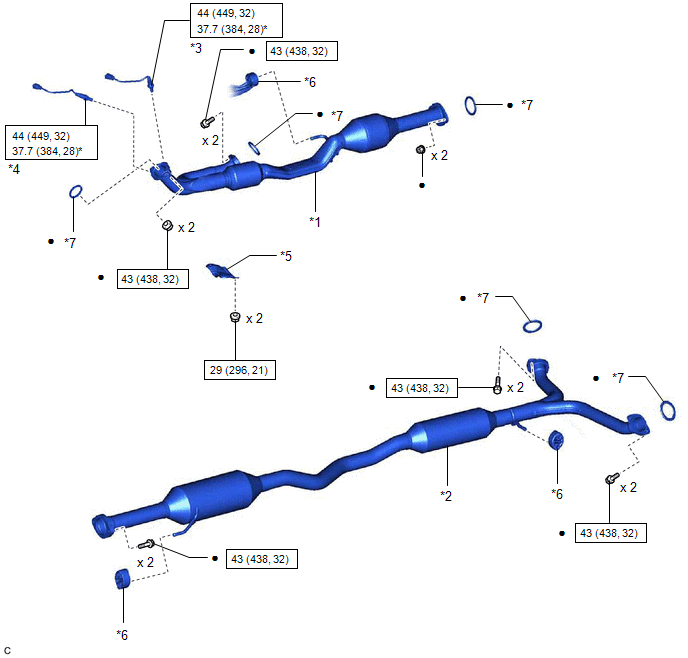

ILLUSTRATION

*1

FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

*2

CENTER EXHAUST PIPE ASSEMBLY

*3

HEATED OXYGEN SENSOR (for Bank 2)

*4

HEATED OXYGEN SENSOR (for Bank 1)

*5

NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side)

*6

EXHAUST PIPE SUPPORT

*7

GASKET

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with SST

Non-reusable part

-

-

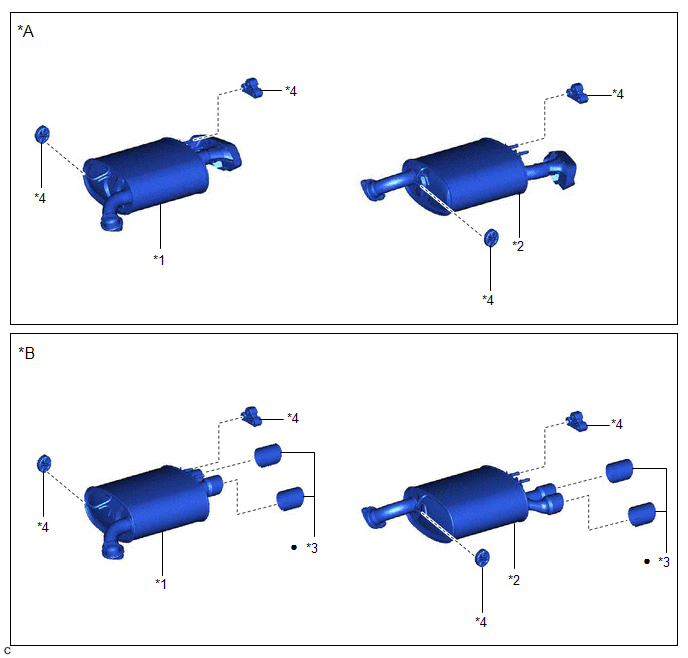

ILLUSTRATION

*A

Type A

*B

Type B

*1

TAIL EXHAUST PIPE ASSEMBLY

*2

TAIL EXHAUST PIPE ASSEMBLY LH

*3

TAIL PIPE BAFFLE

*4

EXHAUST PIPE SUPPORT

Non-reusable part

-

-
