Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL TIMING CHAIN COVER ASSEMBLY

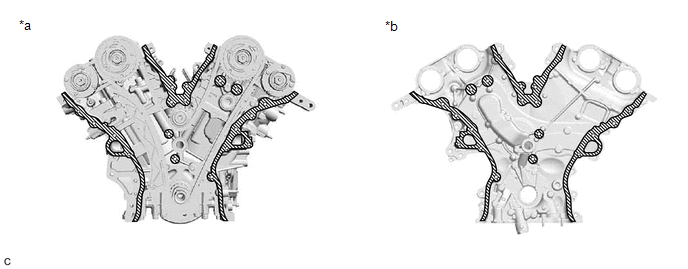

(a) Clean the contact surfaces of the engine assembly, and confirm that no oil, moisture, or other foreign matter is on the surfaces.

*a

Engine Assembly Side

*b

Timing Chain Cover Assembly Side

Clean

-

-

NOTICE:

Be sure to clean the contact surfaces, especially the surfaces shown in the illustration.

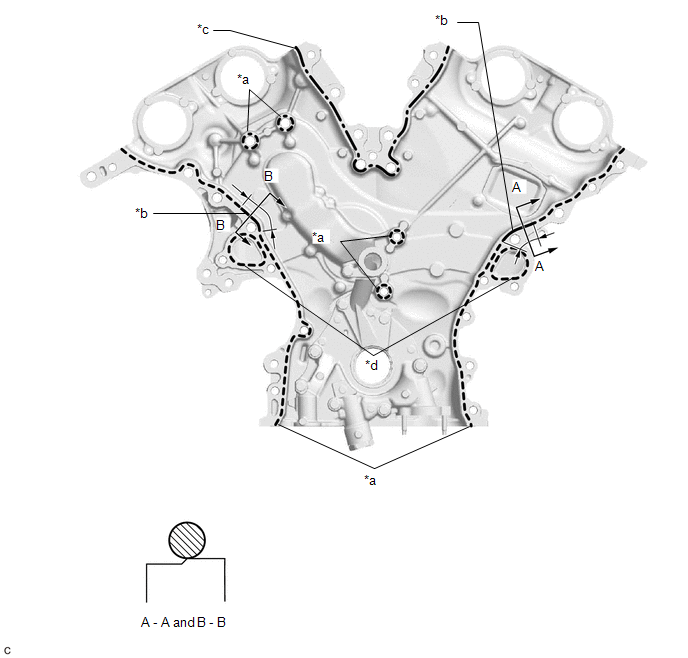

(b) Apply seal packing to the timing chain cover assembly as shown in the illustration.

*a

Dashed Line Area

(Seal packing: Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent)

*b

Continuous Line Area

(Seal packing: Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent)

*c

Alternate Long and Short Dashed Line Area

(Seal packing: Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent)

*d

Dashed Line Area

(Seal packing: Toyota Genuine Seal Packing 1282B, Three Bond 1282B or equivalent)

6.0 mm (0.236 in.) or more

-

-

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

Toyota Genuine Seal Packing 1282B, Three Bond 1282B or equivalent

NOTICE:

If there is oil on the contact surfaces, wipe them with an oil-free cloth before applying seal packing.

Seal Packing Application Chart:

Area

Seal Packing Diameter

Application Position from Inside Seal Line

Dashed Line Area

(Seal packing: Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent)

3.5 mm (0.138 in.) or more

3.0 to 4.0 mm (0.118 to 0.157 in.)

Continuous Line Area

(Seal packing: Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent)

6.0 mm (0.236 in.) or more

5.0 mm (0.197 in.)

Alternate Long and Short Dashed Line Area

(Seal packing: Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent)

4.5 mm (0.177 in.) or more

3.0 to 4.0 mm (0.118 to 0.157 in.)

Dashed line area

(Seal packing: Toyota Genuine Seal Packing 1282B, Three Bond 1282B or equivalent)

3.5 mm (0.138 in.) or more

2.0 to 3.0 mm (0.0787 to 0.118 in.)

(c) Install a new oil pump gasket to the cylinder block sub-assembly.

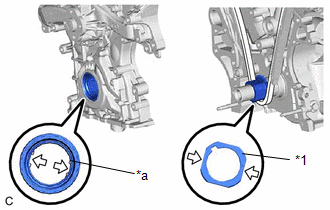

(d) Align the drive rotor spline and the crankshaft as shown in the illustration. Install the timing chain cover assembly.

*1

Crankshaft

*a

Drive Rotor Spline

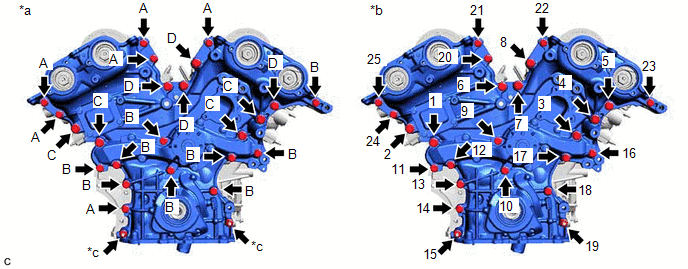

(e) Install the 23 bolts and 2 nuts in the order shown in the illustration.

*a

Torque

*b

Bolt and Nut Tightening Order

*c

Nut

-

-

Bolt Length:

Item

Length

(A)

28 mm (1.10 in.)

(B)

55 mm (2.17 in.)

(C)

60 mm (2.36 in.)

(D)

40 mm (1.57 in.)

NOTICE:

Make sure that there is no oil on the threads of the bolts.

Torque:

Bolt (A), (B)

21 N*m (214 kgf*cm, 15 ft.*lbf)

Bolt (C), (D)

43 N*m (438 kgf*cm, 32 ft.*lbf)

Nut

21 N*m (214 kgf*cm, 15 ft.*lbf)

NOTICE:

  • Tighten the bolts within 10 minutes of applying seal packing.
  • Do not add engine oil for at least 2 hours after installation.
  • Do not start the engine for at least 2 hours after installation.

2. INSTALL TIMING CHAIN CASE OIL SEAL

Click here

3. INSTALL OIL PAN SUB-ASSEMBLY

Click here
