Toyota Avalon Service & Repair Manual: Components

COMPONENTS

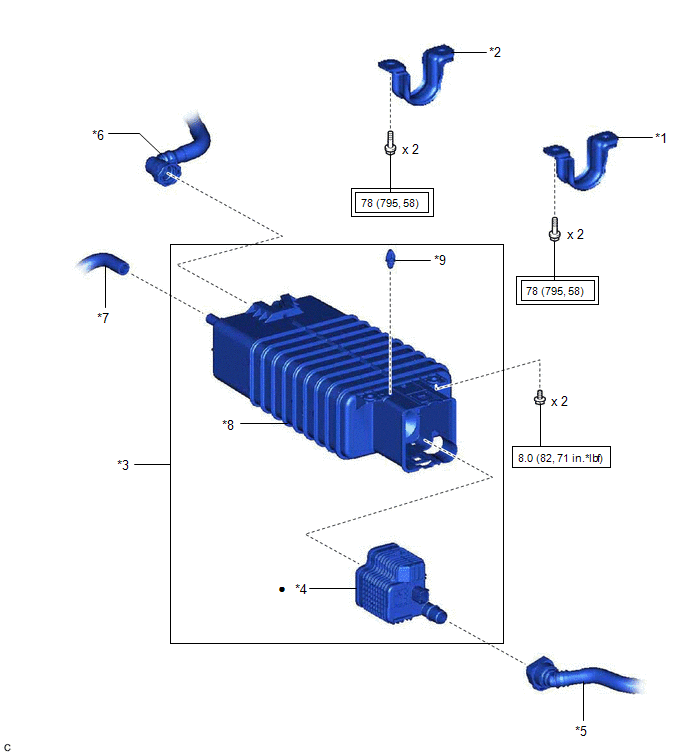

ILLUSTRATION

*1

REAR NO. 1 STABILIZER BAR BRACKET LH

*2

REAR NO. 1 STABILIZER BAR BRACKET RH

*3

CANISTER (CHARCOAL CANISTER ASSEMBLY)

*4

CHARCOAL CANISTER LEAK DETECTION PUMP SUB-ASSEMBLY

*5

FUEL TANK VENT HOSE SUB-ASSEMBLY

*6

FUEL TANK VENT HOSE

*7

PURGE LINE HOSE

*8

CHARCOAL CANISTER SUB-ASSEMBLY

*9

CLIP

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

    Canister

    Inspection
