Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

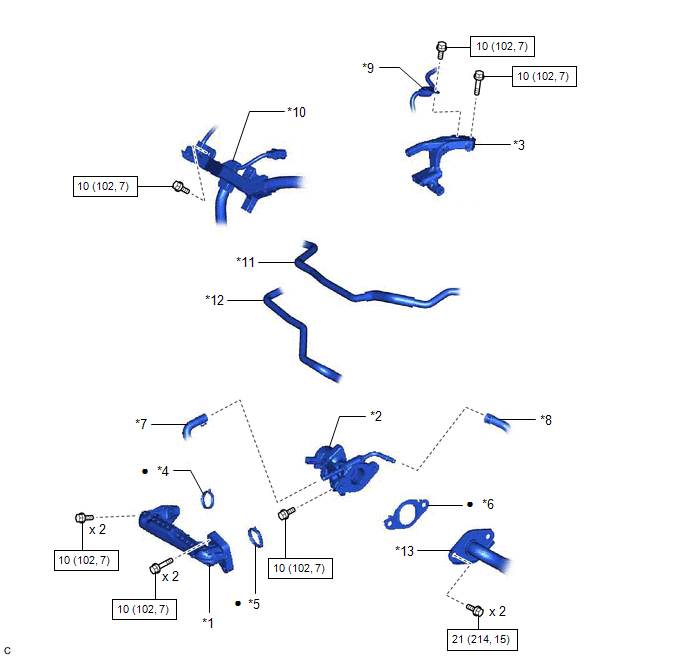

ILLUSTRATION

*1

NO. 1 EGR PIPE SUB-ASSEMBLY

*2

EGR VALVE ASSEMBLY

*3

EGR VALVE BRACKET

*4

EGR INLET GASKET

*5

EGR VALVE ADAPTER GASKET

*6

EGR VALVE GASKET

*7

NO. 8 WATER BY-PASS HOSE

*8

NO. 4 WATER BY-PASS HOSE

*9

FUEL PIPE SUB-ASSEMBLY

*10

ENGINE WIRE

*11

NO. 1 FUEL VAPOR FEED HOSE

*12

NO. 2 FUEL VAPOR FEED HOSE

*13

EGR COOLER ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

    Egr Valve

    Inspection
