COMPONENTS

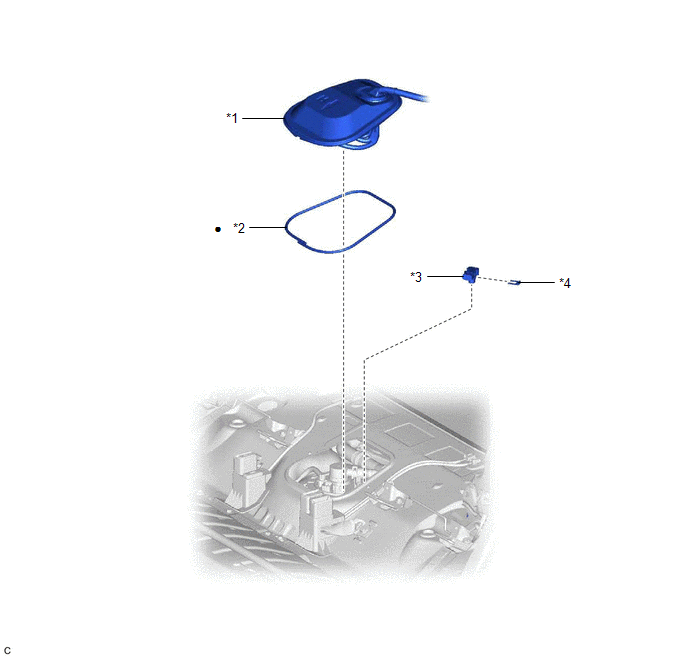

ILLUSTRATION

*1

REAR FLOOR SERVICE HOLE COVER

*2

BUTYL TAPE

*3

FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR ASSEMBLY)

*4

TUBE JOINT CLIP

●

Non-reusable part

-

-
    Fuel Tank Pressure Sensor

    Installation
