COMPONENTS

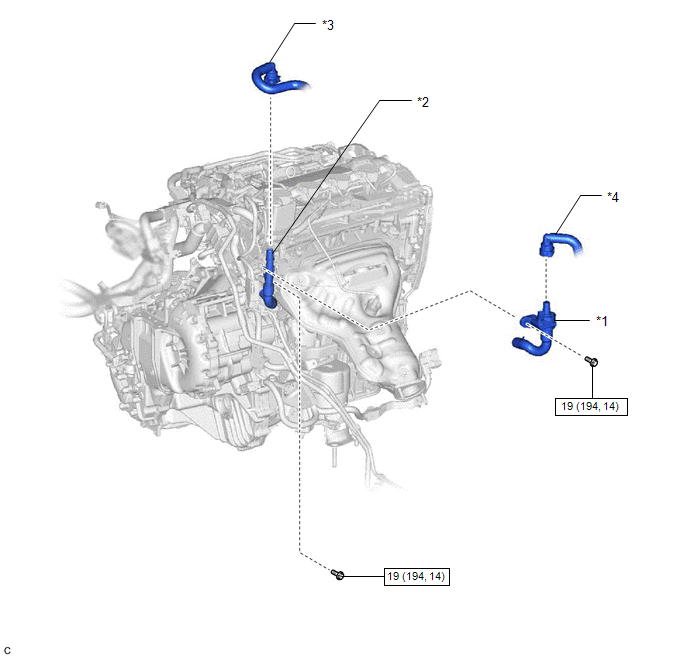

ILLUSTRATION

*1

FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)

*2

NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY

*3

OUTLET HEATER HOSE

*4

INLET HEATER HOSE

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
    Flow Shutting Valve

    Inspection
