Toyota Avalon Service & Repair Manual: Components

Toyota Avalon Service & Repair Manual / Engine / A25a-fxs Cooling / Water Pump / Components

COMPONENTS

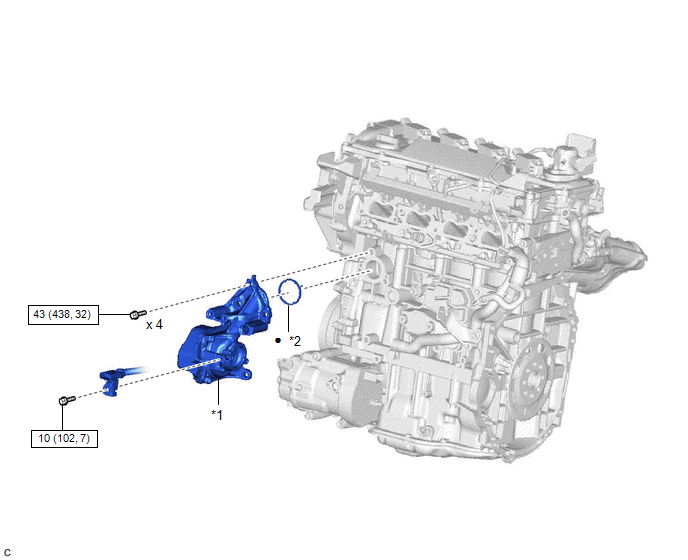

ILLUSTRATION

*1	ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)	*2	GASKET
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
