Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL AIR FUEL RATIO SENSOR

HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Click here

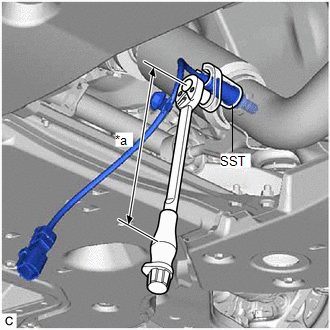

(a) Using SST, install the air fuel ratio sensor to the front exhaust pipe assembly (TWC: Rear Catalyst).

SST: 09224-00012

Torque:

Specified tightening torque :

44 N·m {449 kgf·cm, 32 ft·lbf}

NOTICE:

If the air fuel ratio sensor has been struck or dropped, replace it.

HINT:

  • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Click here

  • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

    37.7 N*m (384 kgf*cm, 28 ft.*lbf)

*a

Torque Wrench Fulcrum Length

(b) Connect the air fuel ratio sensor connector.

(c) Engage the wire harness clamp.

2. INSPECT FOR EXHAUST GAS LEAK

Click here

3. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Click here

    Inspection

    Removal
