PARTS LOCATION

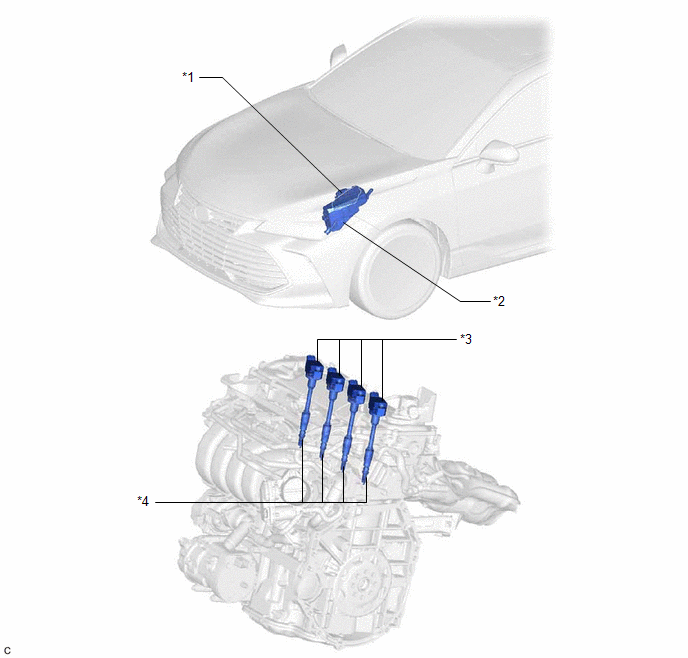

ILLUSTRATION

*1

ECM

*2

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- INJ FUSE

*3

IGNITION COIL ASSEMBLY

*4

SPARK PLUG
