Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. INSTALL KNOCK CONTROL SENSOR

HINT:

Perform "Inspection After Repair" after replacing the knock control sensor.

Click here

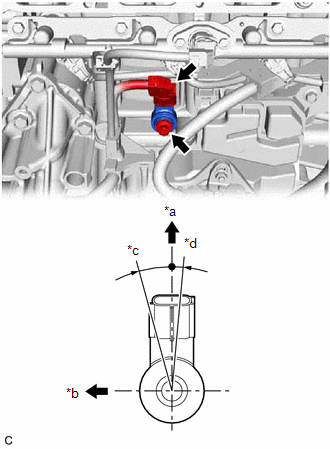

(a) Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.

Torque:

21 N·m {214 kgf·cm, 15 ft·lbf}

NOTICE:

  • If the knock control sensor has been struck or dropped, replace it.
  • Make sure that the knock control sensor is in the correct position.

*a

Top

*b

Right of Vehicle

*c

15°

*d

(b) Connect the knock control sensor connector.

2. INSTALL INTAKE MANIFOLD

Click here

3. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing the knock control sensor.

Click here
