COMPONENTS

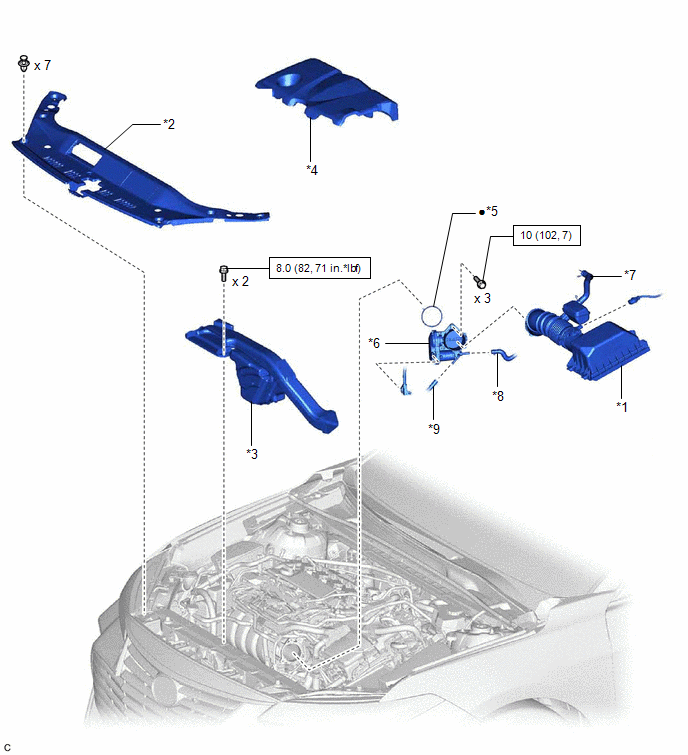

ILLUSTRATION

*1

AIR CLEANER CAP WITH AIR CLEANER HOSE

*2

COOL AIR INTAKE DUCT SEAL

*3

INLET AIR CLEANER ASSEMBLY

*4

NO. 1 ENGINE COVER SUB-ASSEMBLY

*5

THROTTLE BODY GASKET

*6

THROTTLE BODY WITH MOTOR ASSEMBLY

*7

NO. 2 VENTILATION HOSE

*8

NO. 6 WATER BY-PASS HOSE

*9

NO. 5 WATER BY-PASS HOSE

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
