PARTS LOCATION

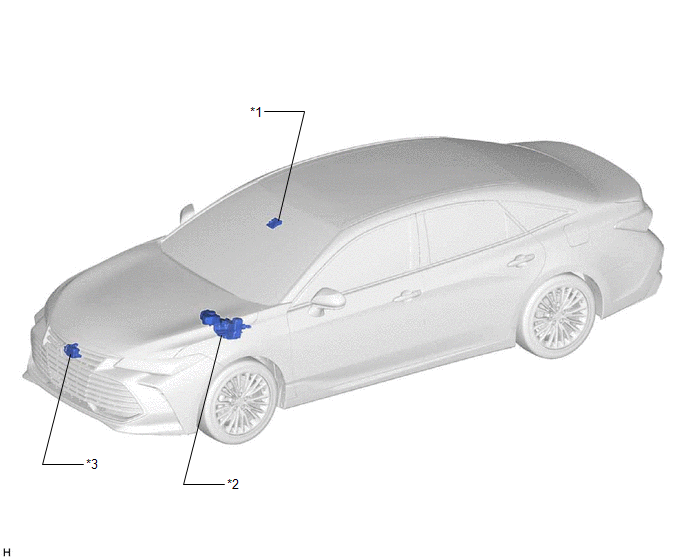

ILLUSTRATION

*1

FORWARD RECOGNITION CAMERA

*2

BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

- SKID CONTROL ECU

*3

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

-

-

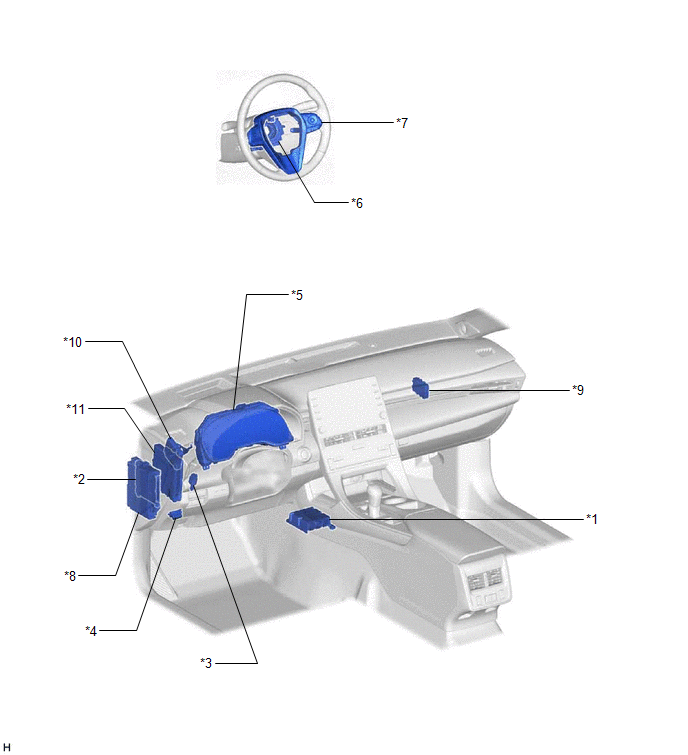

ILLUSTRATION

*1

AIRBAG SENSOR ASSEMBLY

- YAW RATE AND ACCELERATION SENSOR

*2

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*3

STOP LIGHT SWITCH ASSEMBLY

*4

DLC3

*5

COMBINATION METER ASSEMBLY

- Multi-information Display

- Cruise Control Indicator

- Cruise SET Indicator

- Warning Buzzer

- Master Warning Light

*6

SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

- SPIRAL CABLE SUB-ASSEMBLY

- STEERING SENSOR

*7

STEERING PAD SWITCH ASSEMBLY (CRUISE CONTROL SWITCH)

- VEHICLE-TO-VEHICLE DISTANCE CONTROL SWITCH

- CRUISE CONTROL MAIN SWITCH

- -SET SWITCH

- +RES SWITCH

- CANCEL SWITCH

*8

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- STOP FUSE

- ECU-IG1 NO. 4 FUSE

- ECU-IG2 NO. 3 FUSE

*9

CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

*10

DRIVING SUPPORT ECU ASSEMBLY

*11

HYBRID VEHICLE CONTROL ECU

-

-
