PARTS LOCATION

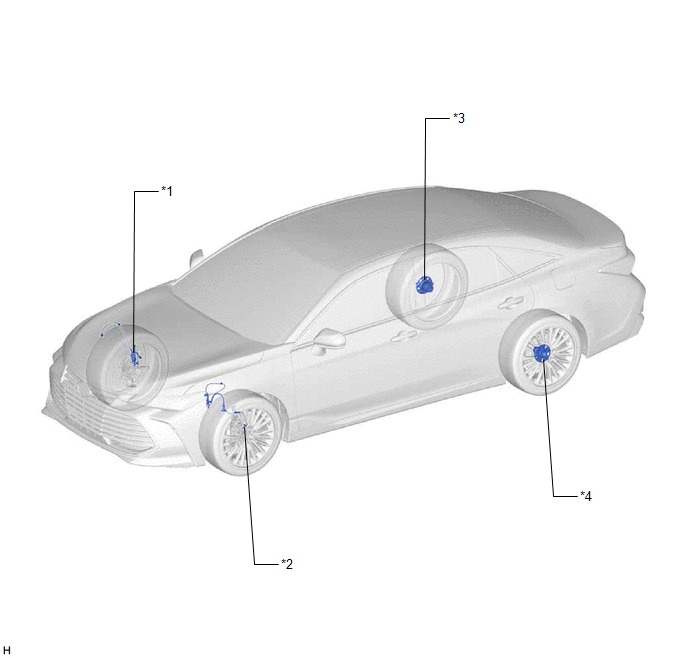

ILLUSTRATION

*1

FRONT SPEED SENSOR RH

*2

FRONT SPEED SENSOR LH

*3

REAR AXLE HUB AND BEARING ASSEMBLY RH

- REAR SPEED SENSOR RH

*4

REAR AXLE HUB AND BEARING ASSEMBLY LH

- REAR SPEED SENSOR LH

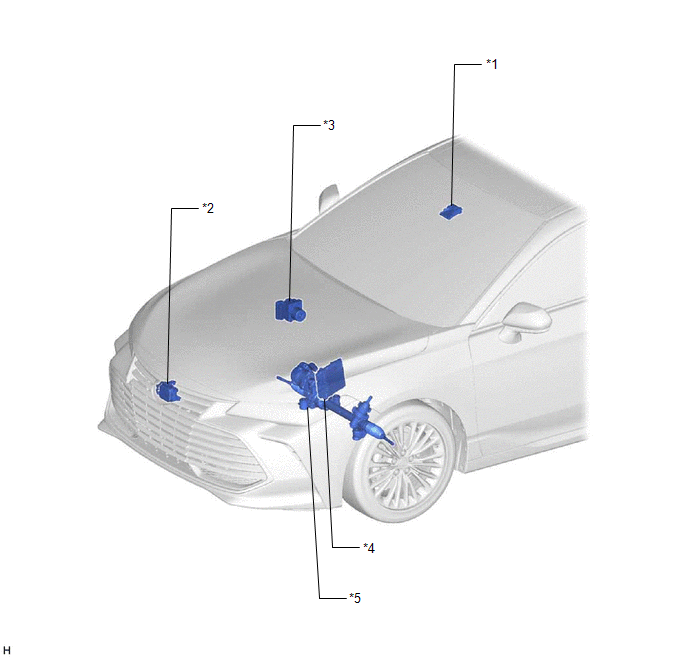

ILLUSTRATION

*1

FORWARD RECOGNITION CAMERA

*2

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*3

BRAKE ACTUATOR ASSEMBLY

- SKID CONTROL ECU

*4

ECM

*5

RACK AND PINION POWER STEERING GEAR ASSEMBLY

- POWER STEERING ECU

-

-

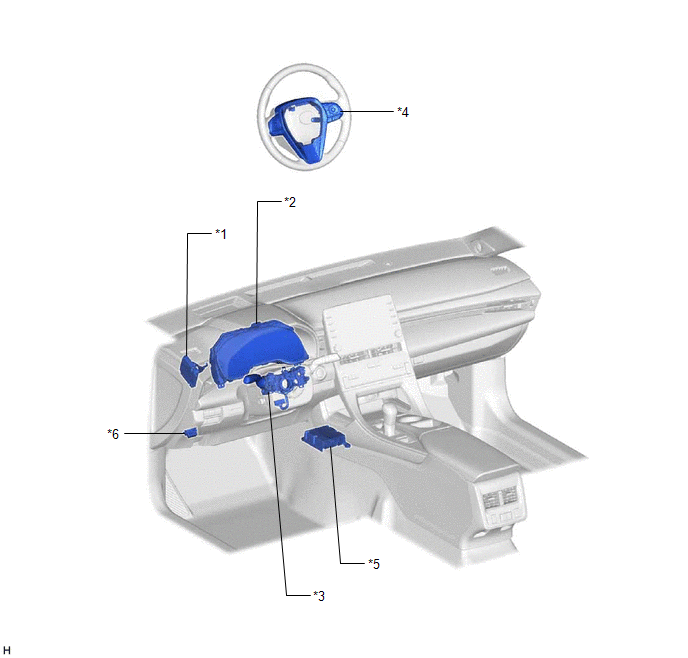

ILLUSTRATION

*1

DRIVING SUPPORT ECU ASSEMBLY

*2

COMBINATION METER ASSEMBLY

- MULTI-INFORMATION DISPLAY

- LANE DEPARTURE ALERT INDICATOR

- LANE DEPARTURE ALERT BUZZER

*3

TURN SIGNAL SWITCH

*4

STEERING PAD SWITCH ASSEMBLY

- LANE DEPARTURE ALERT MAIN SWITCH

- FUNCTION SWITCH (CUSTOMIZE SWITCH)

*5

AIRBAG ECU ASSEMBLY

- YAW RATE SENSOR

*6

DLC3

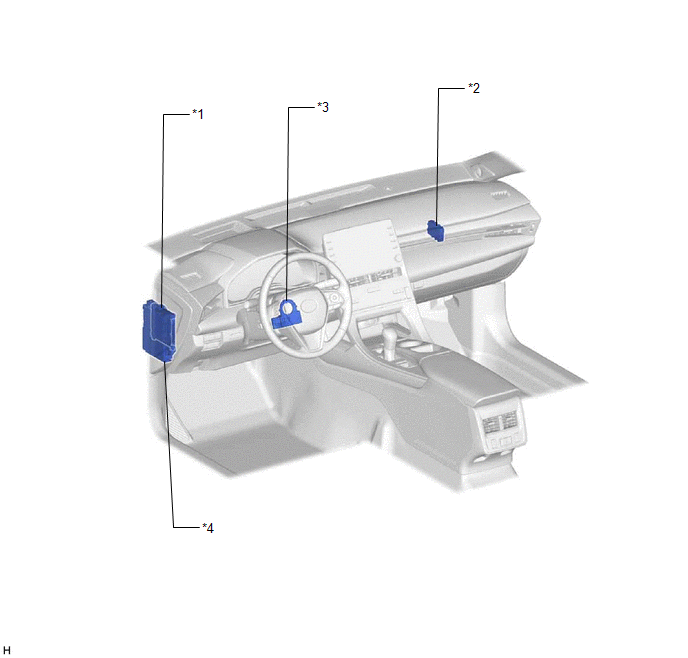

ILLUSTRATION

*1

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*2

CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

*3

STEERING SENSOR

*4

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 3 FUSE
