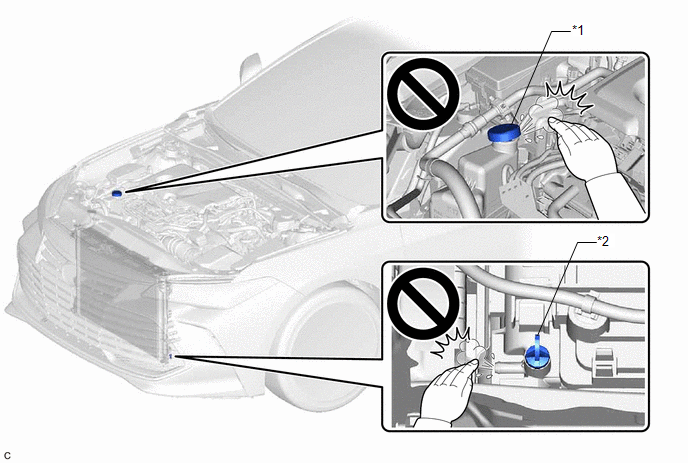

REPLACEMENT CAUTION / NOTICE / HINT CAUTION: To avoid the danger of being burned, do not remove the reserve tank cap or drain cock plug while the coolant (for inverter) is still hot. Pressurized, hot coolant (for inverter) and steam may be released and cause serious burns. ![]()
PROCEDURE 1. DRAIN COOLANT (for Inverter) Click here
2. ADD COOLANT (for Inverter) Click here
3. INSPECT FOR COOLANT LEAK (for Inverter) Click here |
Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Sfi System: Parts Location
PARTS LOCATION ILLUSTRATION *1 CANISTER *2 FUEL PUMP (for Low Pressure Side) *3 MASS AIR FLOW METER SUB-ASSEMBLY *4 RADIATOR SHUTTER ASSEMBLY - RADIATOR SHUTTER SUB-ASSEMBLY - SWING GRILLE ACTUATOR ASSEMBLY *5 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY *6 FUEL PUMP CONTROL ECU * ...
