Toyota Avalon Service & Repair Manual: Components

COMPONENTS

ILLUSTRATION

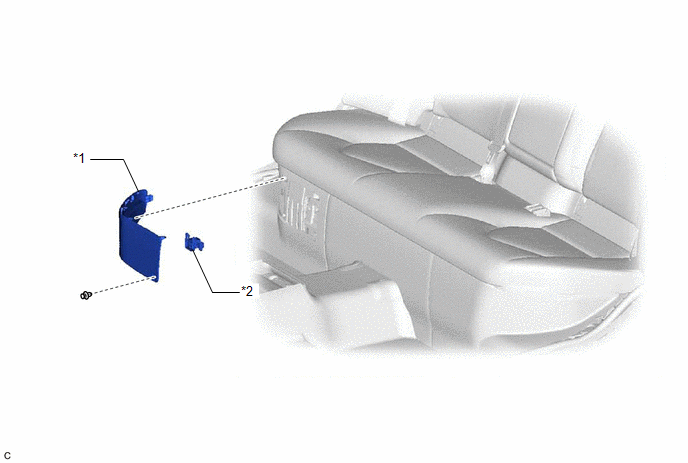

*1

BATTERY SERVICE HOLE COVER

*2

SERVICE PLUG GRIP

ILLUSTRATION

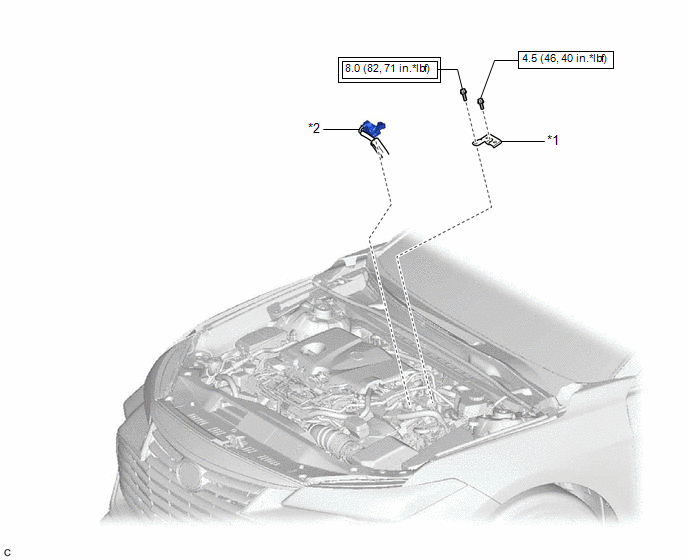

*1

CONNECTOR COVER ASSEMBLY

*2

ENGINE ROOM MAIN WIRE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

ILLUSTRATION

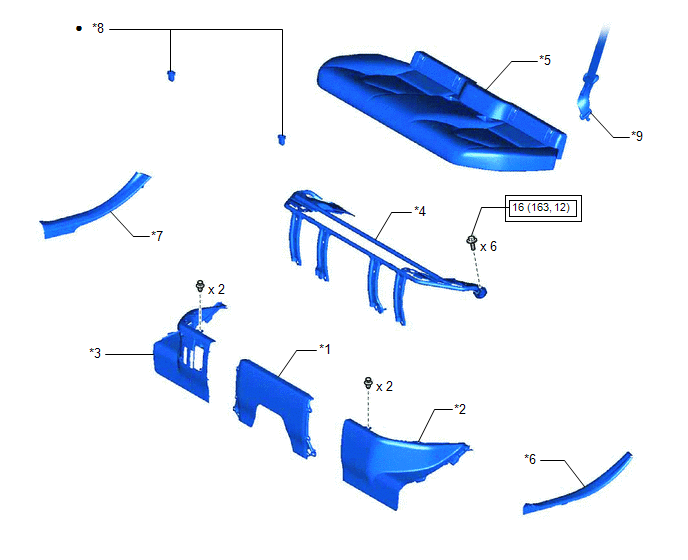

*1

REAR UNDER COVER

*2

REAR UNDER SIDE COVER LH

*3

REAR UNDER SIDE COVER RH

*4

REAR SEAT CUSHION LEG SUB-ASSEMBLY

*5

REAR SEAT CUSHION ASSEMBLY

*6

REAR DOOR SCUFF PLATE LH

*7

REAR DOOR SCUFF PLATE RH

*8

REAR SEAT CUSHION LOCK HOOK

*9

REAR CENTER SEAT OUTER BELT ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

ILLUSTRATION

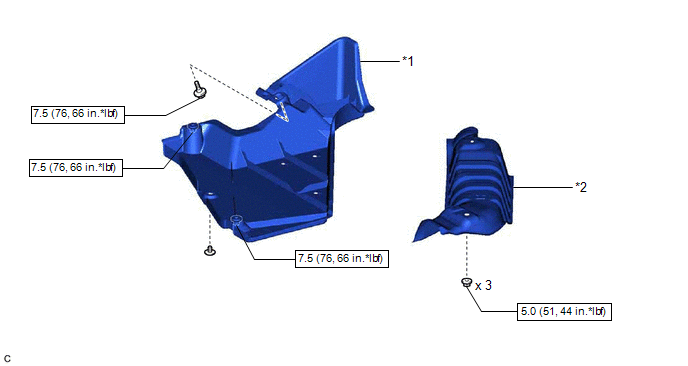

*1

NO. 1 FLOOR UNDER COVER

*2

CENTER NO. 2 FLOOR HEAT INSULATOR

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

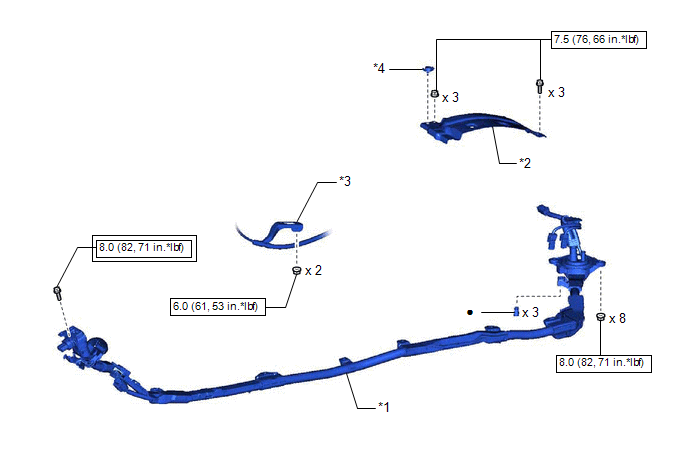

*1

HV FLOOR UNDER WIRE

*2

NO. 1 HV BATTERY COVER PANEL RH

*3

TRANSMISSION CONTROL CABLE ASSEMBLY

*4

BATTERY COVER LOCK STRIKER

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

    Frame Wire

    Installation
