INSTALLATION

PROCEDURE

1. INSTALL HYBRID BATTERY TERMINAL BLOCK

CAUTION:

Be sure to wear insulated gloves and protective goggles.

(a) Connect the 2 hybrid battery terminal block connectors.

NOTICE:

Make sure that the connectors are connected securely.

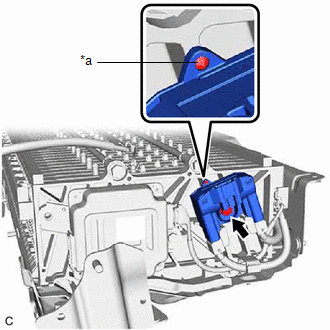

(b) Install the hybrid battery terminal block to the HV battery with the bolt.

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

NOTICE:

Make sure to align the hole of the hybrid battery terminal block with the pin.

2. INSTALL NO. 1 HV BATTERY SHIELD PANEL

Click here

3. INSTALL UPPER HV BATTERY COVER SUB-ASSEMBLY

Click here

4. INSTALL HV BATTERY

Click here
