DTC SUMMARY

MALFUNCTION DESCRIPTION

These DTCs indicate that the motor inverter temperature sensor value is abnormal. The cause of this malfunction may be one of the following:

Internal inverter malfunction
  • Inverter with converter assembly internal circuit malfunction
Hybrid cooling system malfunction
  • Coolant circulation abnormal (frozen or leaking, etc.)
Inverter low-voltage circuit malfunction
  • The connectors are not connected properly

DESCRIPTION

The motor generator control ECU (MG ECU), which is built into in the inverter with converter assembly, detects the temperature of the motor inverter using the motor inverter temperature sensor. If necessary, the motor generator control ECU (MG ECU) will limit inverter output to help prevent the motor inverter from overheating. The motor generator control ECU also detects malfunctions in the sensor based on the temperature sensor values.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Warning Indicate

P0AED1C

Drive Motor Inverter Temperature Sensor "A" Circuit Voltage Out of Range

The actual motor inverter temperature high and the difference between the estimated motor inverter temperature and the actual temperature exceeds a threshold for 10 seconds, or after a long soak, the motor inverter temperature sensor value differs from the values of other sensors.

(1 trip detection logic)

  • Inverter cooling system
  • Cooling fan system
  • Grille shutter system
  • Inverter with converter assembly
  • Wire harness or connector

Comes on

Master Warning Light:

Comes on

Related Data List

DTC No.

Data List

P0AED1C

  • Motor Inverter Temperature
  • Inverter Coolant Temperature

MONITOR DESCRIPTION

If the motor generator control ECU detects a malfunction of the Drive Motor Inverter Temperature Sensor "A", it will illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs

P0AEE (INF P0AED1C): Drive Motor Inverter Temperature Sensor "A" Circuit Range / Performance

Required sensors/components

Inverter, boost converter

Frequency of operation

Continuous

Duration

TMC's intellectual property

MIL operation

1 driving cycle

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

The monitor will run whenever the following DTCs are not stored

TMC's intellectual property

Other conditions belong to TMC's intellectual property

-

TYPICAL MALFUNCTION THRESHOLDS

TMC's intellectual property

-

COMPONENT OPERATING RANGE

Motor generator control ECU

DTC P0AEE (INF P0AED1C) is not detected

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the power switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the power switch on (READY), shift lever in D, while depressing the brake pedal with the vehicle stopped, depress the accelerator pedal. [*1]
  5. After the engine starts, release the accelerator pedal and wait for the engine to stop. [*2]
  6. Turn the power switch off and wait for 5 hours or more. [*3]

    NOTICE:

    Make sure that the temperature of the inverter coolant do not drop below 15°C (59°F).

  7. Turn the power switch on (IG) and within 3 seconds or less, turn the power switch on (READY) and wait 10 seconds or more. [*4]

    HINT:

    It is possible to turn the power switch on (READY) without turning it on (IG) first.

  8. Turn the Techstream on. [*5]
  9. Drive the vehicle for approximately 10 minutes with the value of Data List item "Inverter Coolant Temperature" 25°C (77°F) or more. [*6]

    HINT:

    [*1] to [*6]: Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  10. Enter the following menus: Powertrain / Motor Generator / Utility / All Readiness.
  11. Check the DTC judgment result.

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.

WIRING DIAGRAM

Refer to the wiring diagram for the Cooling System.

Click here

CAUTION / NOTICE / HINT

CAUTION:

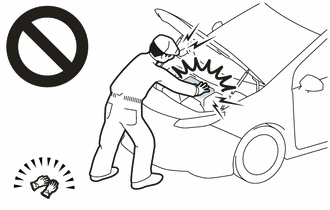

  • Before the following operations are conducted, take precautions to prevent electric shock by turning the power switch off, wearing insulated gloves, and removing the service plug grip from HV battery.
    • Inspecting the high-voltage system
    • Disconnecting the low voltage connector of the inverter with converter assembly
    • Disconnecting the low voltage connector of the HV battery

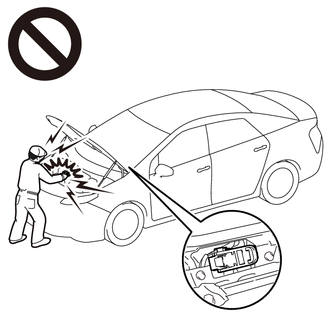

  • To prevent electric shock, make sure to remove the service plug grip to cut off the high voltage circuit before servicing the vehicle.

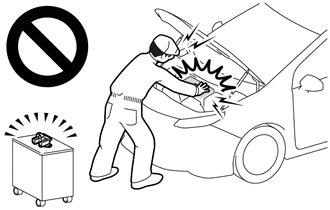

  • After removing the service plug grip from the HV battery, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
  • After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.

    Click here

    HINT:

    Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

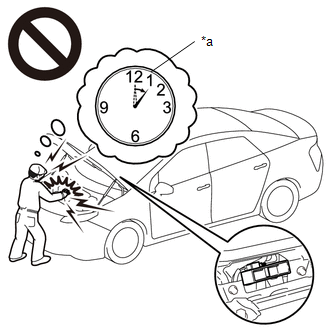

    *a

    Without waiting for 10 minutes

NOTICE:

After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click here

PROCEDURE

1.

CHECK DTC OUTPUT (HYBRID CONTROL)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

(d) Check for DTCs.

Powertrain > Hybrid Control > Trouble Codes

Result

Proceed to

P0AED1C only is output, or DTCs except the ones in the table below are also output.

A

Any of the following DTCs are also output.

B

Table 1

Malfunction Content

Relevant DTC

Insulation Malfunction

P1C7C49

Hybrid/EV Battery Voltage System Isolation (A/C Area) Internal Electronic Failure

P1C7D49

Hybrid/EV Battery Voltage System Isolation (Hybrid/EV Battery Area) Internal Electronic Failure

P1C7E49

Hybrid/EV Battery Voltage System Isolation (Transaxle Area) Internal Electronic Failure

P1C7F49

Hybrid/EV Battery Voltage System Isolation (Direct Current Area) Internal Electronic Failure

Table 2

Malfunction Content

Relevant DTC

Sensor and actuator circuit malfunction

P0C7396

Motor Electronics Coolant Pump "A" Component Internal Failure

P314A31

Motor Electronics Coolant Pump "A" No Signal

System malfunction

P0A9300

Inverter "A" Cooling System

HINT:

  • P0AED1C may be output as a result of the malfunction indicated by the DTCs above.
    1. The chart above is listed in inspection order of priority.
    2. Check DTCs that are output at the same time by following the listed order. (The main cause of the malfunction can be determined without performing unnecessary inspections.)

(e) Turn the power switch off.

B

GO TO DTC CHART (HYBRID CONTROL SYSTEM)

A

2.

CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR)

Click here

Result

Proceed to

OK

A

NG (The connector is not connected securely.)

B

NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.)

C

B

CONNECT SECURELY

C

REPAIR OR REPLACE HARNESS OR CONNECTOR

A

3.

CHECK COOLING SYSTEM

Click here

HINT:

If the "Cooling System" inspection results are normal, perform the next step.

NEXT

REPLACE INVERTER WITH CONVERTER ASSEMBLY
