Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Sub Radiator

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Engine / Hybrid / Battery Control / Sub Radiator

Components

COMPONENTS

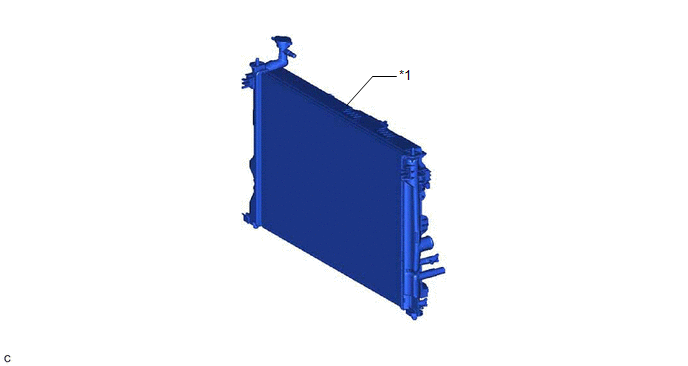

ILLUSTRATION

*1

RADIATOR ASSEMBLY

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL RADIATOR ASSEMBLY

HINT:

The radiator (for inverter coolant) is part of the radiator (for Engine). If the radiator (for inverter coolant) needs to be replaced, replace the radiator assembly.

(a) Install the radiator assembly.

Click here

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during radiator assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Front bumper assembly (w/ Panoramic view monitor system)

Front television camera view adjustment

Panoramic view monitor system

for Initialization

for Calibration

Front bumper assembly (w/ Intuitive Parking Assist System)
  • Measurement of ultrasonic sensor detection angle
  • Ultrasonic sensor detection angle registration
  • Intelligent clearance sonar system
  • Intuitive parking assist system

  • Headlight ECU sub-assembly LH
  • Headlight assembly LH

Synchronize the vehicle information

Lighting system (for HV Model with Cornering Light)

  • Swing grill actuator assembly
  • Radiator shutter sub-assembly

Change grille shutter control mode and/or perform initialization

Grille shutter system

PROCEDURE

1. REMOVE RADIATOR ASSEMBLY

HINT:

The radiator (for inverter coolant) is part of the radiator (for Engine). If the radiator (for inverter coolant) needs to be replaced, replace the radiator assembly.

(a) Remove the radiator assembly.

Click here

    Removal

    Water Pump With Motor
