Components

COMPONENTS

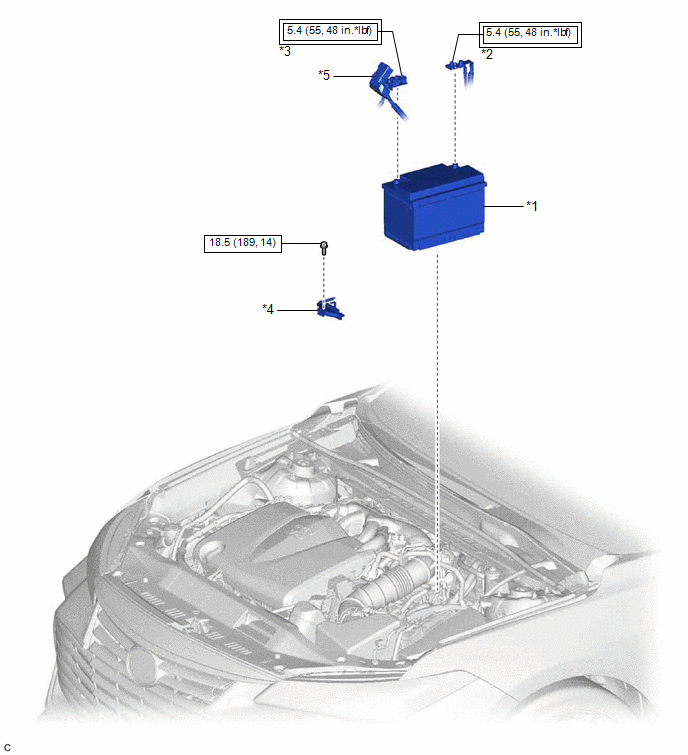

ILLUSTRATION

*1	BATTERY	*2	NEGATIVE BATTERY TERMINAL
*3	POSITIVE BATTERY TERMINAL	*4	NO. 2 BATTERY CLAMP
*5	BATTERY TERMINAL CAP	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced battery removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed
*: When performing learning using the Techstream. Click here
Battery terminal is disconnected/reconnected	Perform steering sensor zero point calibration	Lane departure alert system (w/ Steering Control)
		Pre-collision system
		Intelligent clearance sonar system*
		Lighting System (for Gasoline Model with Cornering Light)
	Memorize steering angle neutral point	Parking assist monitor system
	Memorize steering angle neutral point	Panoramic view monitor system

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Click here
When replacing the battery, use a new battery of the same dimensions with a capacity of 70 Ah or more at a 20-hour rate.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Click here

3. REMOVE BATTERY

Click here

2gr-fks Battery / Charging

Charging System
