Toyota Avalon Service & Repair Manual: Multiplex Tilt And Telescopic Ecu

Toyota Avalon Service & Repair Manual / Steering / Steering Column / Multiplex Tilt And Telescopic Ecu

Components

COMPONENTS

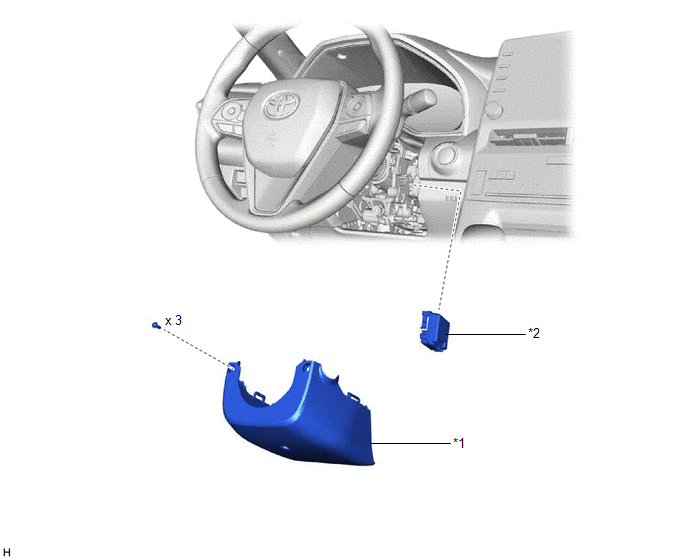

ILLUSTRATION

*1

LOWER STEERING COLUMN COVER

*2

MULTIPLEX TILT AND TELESCOPIC ECU

Installation

INSTALLATION

PROCEDURE

1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU

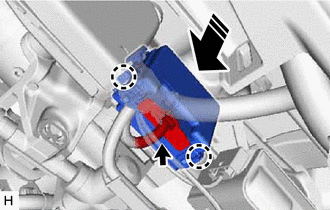

(a) Engage the 2 claws to install the multiplex tilt and telescopic ECU.

Install in this direction

(b) Connect the connector.

2. INSTALL LOWER STEERING COLUMN COVER

Click here

3. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

Click here

Removal

REMOVAL

PROCEDURE

1. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS

Click here

2. REMOVE LOWER STEERING COLUMN COVER

Click here

3. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU

(a) Disconnect the connector.

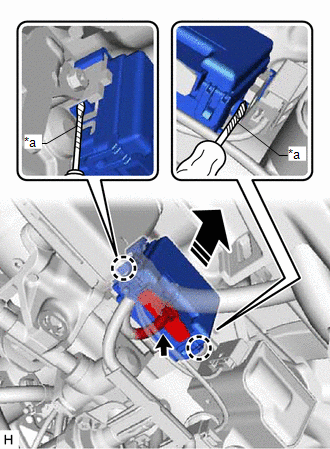

*a

Protective Tape

Remove in this direction

(b) Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the multiplex tilt and telescopic ECU.

    System Diagram

    Power Tilt And Power Telescopic Steering Column System(for Gasoline Model)
