Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:

Before replacing the steering lock actuator assembly, refer to Registration.

for Gasoline Model: Click here

for HV Model: Click here

PROCEDURE

1. REMOVE STEERING LOCK ACTUATOR ASSEMBLY

(a) Secure the steering column assembly in a vise between aluminum plates.

NOTICE:

Do not overtighten the vise.

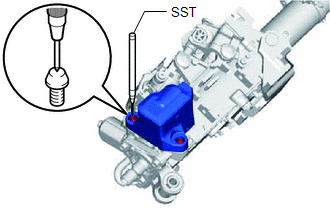

(b) Using SST, strike a punch mark for drilling in the center of the steering lock set bolt.

SST: 09622-00010

NOTICE:

When striking the punch mark, in order to prevent impact force from being applied to the steering lock actuator assembly, do not use a normal center punch.

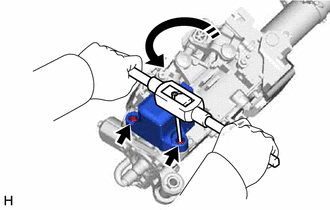

(c) Using a drill, drill a hole in the 2 steering lock set bolts and insert a screw extractor.

(d) Using the screw extractor, remove the 2 steering lock set bolts and steering lock actuator assembly.

    Components

    Inspection
