Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:

• Do not remove/install the spiral cable with sensor sub-assembly with the auxiliary battery connected and the engine switch (for Gasoline Model) or power switch (for HV Model) on (IG).
• Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the engine switch (for Gasoline Model) or power switch (for HV Model) on (IG).
• Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.

PROCEDURE

1. INSTALL NO. 1 SWITCH WIRE (w/ Shift Paddle Switch)

for Gasoline Model: Click here

for HV Model: Click here

2. INSTALL SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) (w/ Shift Paddle Switch)

for Gasoline Model: Click here

for HV Model: Click here

3. INSTALL STEERING PAD SWITCH ASSEMBLY

Click here

4. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

5. INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

Click here

6. INSTALL STEERING WHEEL ASSEMBLY

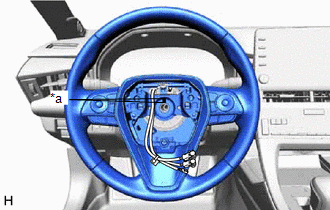

(a) Align the matchmarks on the steering wheel assembly and steering main shaft to install the steering wheel assembly.

*a Matchmark

(b) Using a 10 mm hexagon socket wrench, install the steering wheel assembly set bolt.

Torque:

62 N·m {632 kgf·cm, 46 ft·lbf}

(c) Connect each connector to the spiral cable with sensor sub-assembly and steering wheel assembly.

7. CHECK STEERING WHEEL CENTER POINT

8. INSTALL HORN BUTTON ASSEMBLY

Click here
