On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT ABSORBER CONTROL ACTUATOR

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

for LH Side

Tester Connection

Condition

Specified Condition

1 (FAL-) - 2 (FAL+)

15 to 25°C

3.3 to 3.7 Ω
for RH Side

Tester Connection

Condition

Specified Condition

1 (FAR-) - 2 (FAR+)

15 to 25°C

3.3 to 3.7 Ω

If the result is not as specified, replace the front shock absorber assembly.

*A

for LH Side

*B

for RH Side

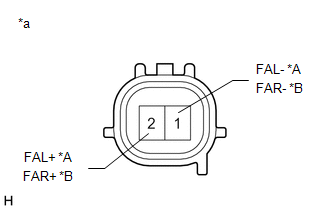

*a

Component without harness connected

(Absorber Control Actuator)
    Suspension Control

    Absorber Control Actuator(for Rear Side)
