Toyota Avalon Service & Repair Manual: Absorber Control Switch

Components

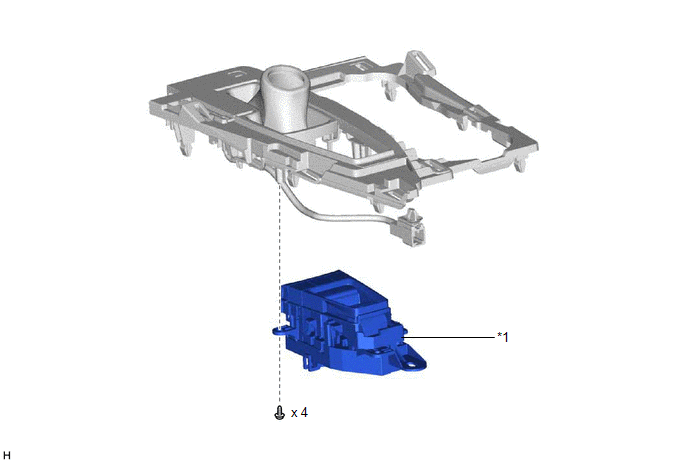

COMPONENTS

ILLUSTRATION

*1

ABSORBER CONTROL SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT ABSORBER CONTROL SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

13 (B) - 16 (GND1)

NORMAL/CUSTOM mode switch being pushed and held

Below 1 Ω

NORMAL/CUSTOM mode switch not pushed

10 kΩ or higher

12 (P) - 16 (GND1)

SPORT S/S+ mode switch being pushed and held

Below 1 Ω

SPORT S/S+ mode switch not pushed

10 kΩ or higher

11 (ECU) - 16 (GND1)

ECO mode switch being pushed and held

Below 1 Ω

ECO mode switch not pushed

10 kΩ or higher

(1) If the result is not as specified, replace the absorber control switch (electric parking brake switch assembly).

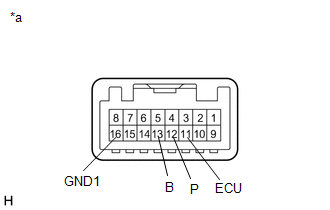

*a

Component without harness connected

(Absorber Control Switch (Electric Parking Brake Switch Assembly))

Installation

INSTALLATION

PROCEDURE

1. INSTALL ABSORBER CONTROL SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)

Click here

    Absorber Control Actuator(for Rear Side)

    Adaptive Variable Suspension System
