Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Tire And Wheel

Components

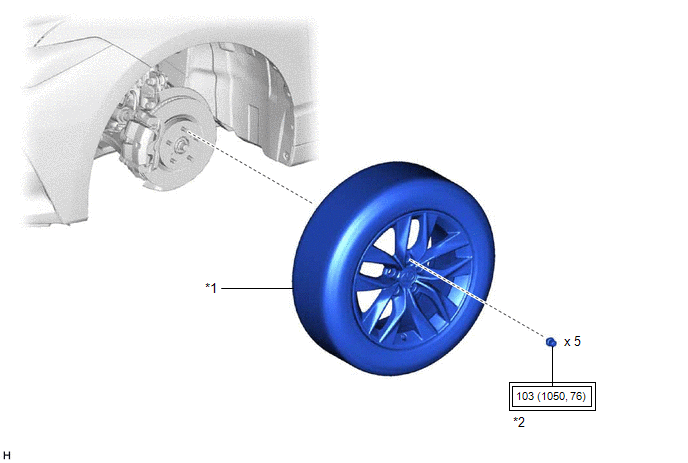

COMPONENTS

ILLUSTRATION

*1

WHEEL ASSEMBLY

*2

AXLE HUB NUT

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

    Inspection

    Tire Pressure Monitoring
