Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT DOOR SCUFF PLATE LH

Click here

2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click here

3. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click here

4. REMOVE INSTRUMENT SIDE PANEL LH

Click here

5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

6. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click here

7. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

Click here

8. REMOVE FUEL LID OPENER SWITCH

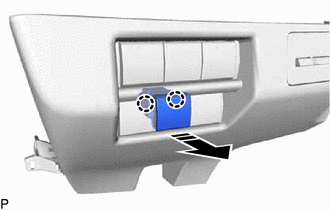

(a) Disengage the 2 claws and remove the fuel lid opener switch as shown in the illustration.

Remove in this Direction

    Installation

    Fuel Lid Opener System(for Gasoline Model)
