Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Luggage Compartment Door Weatherstrip

Components

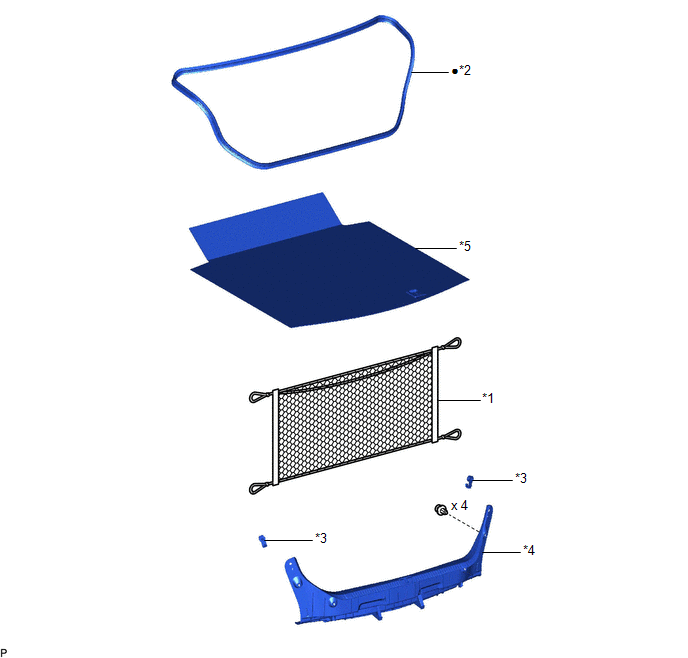

COMPONENTS

ILLUSTRATION

*1

BAGGAGE HOLDER NET

*2

LUGGAGE COMPARTMENT DOOR WEATHERSTRIP

*3

NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

*4

REAR FLOOR FINISH PLATE

*5

SPARE WHEEL COVER ASSEMBLY

-

-

Non-reusable part

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL LUGGAGE COMPARTMENT DOOR WEATHERSTRIP

(a) Make sure to remove any non-drying sealant from the installation surfaces on the vehicle body.

NOTICE:

If there is any non-drying sealant remaining on the vehicle body, the luggage compartment door weatherstrip may not be able to be securely installed and may fall off. Make sure to completely remove the non-drying sealant from both the interior side and exterior side installation surfaces on the vehicle body.

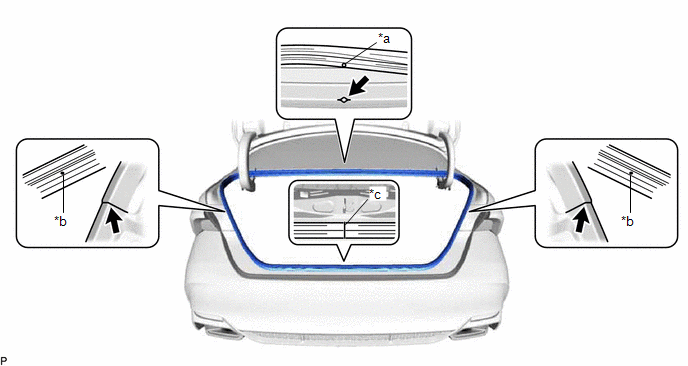

(b) Align the joint of a new luggage compartment door weatherstrip with the luggage compartment door lock striker and temporarily install the luggage compartment door weatherstrip.

*a

Alignment Mark (Green)

*b

Alignment Mark (White)

*c

Joint

-

-

Flange Position

-

-

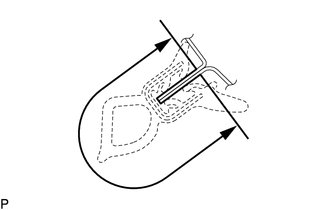

(c) Align the alignment marks on the luggage compartment door weatherstrip with the flanges on the vehicle body indicated by the arrows, and install the luggage compartment door weatherstrip.

NOTICE:

  • Make sure to position the alignment marks correctly during installation. Failure to do so may lead to water ingress.
  • After installation, check that the corners fit correctly.

HINT:

Make sure to install the parts of the luggage compartment door weatherstrip near the joint and alignment marks shown in the illustration first, and then install the corners.

2. INSTALL REAR FLOOR FINISH PLATE

Click here

3. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

Click here

4. INSTALL BAGGAGE HOLDER NET

Click here

5. INSTALL SPARE WHEEL COVER ASSEMBLY

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE SPARE WHEEL COVER ASSEMBLY

Click here

2. REMOVE BAGGAGE HOLDER NET

Click here

3. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

Click here

4. REMOVE REAR FLOOR FINISH PLATE

Click here

5. REMOVE LUGGAGE COMPARTMENT DOOR WEATHERSTRIP

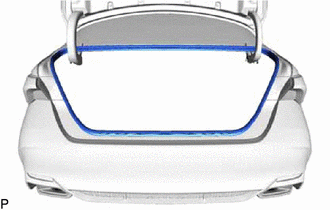

(a) Remove the luggage compartment door weatherstrip.

    Removal

    Luggage Compartment Door
