Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Rear Spoiler

Components

COMPONENTS

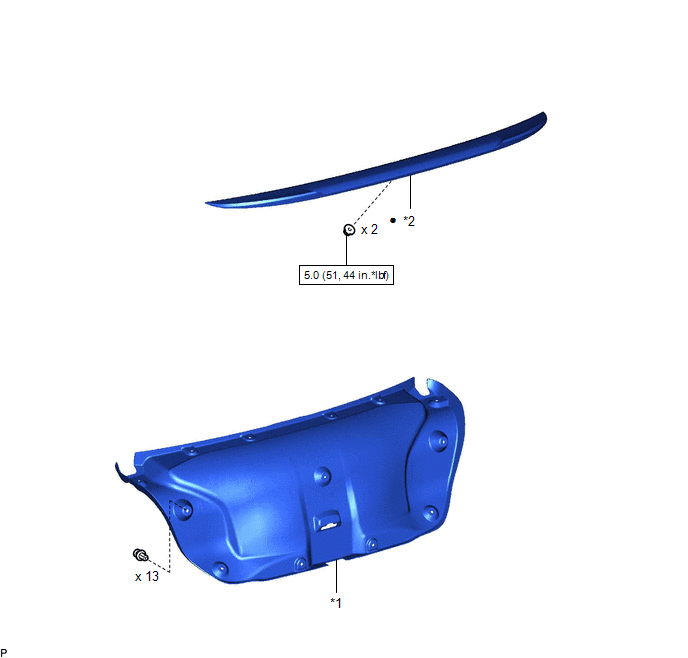

ILLUSTRATION

*1

LUGGAGE COMPARTMENT DOOR COVER

*2

REAR SPOILER SUB-ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Installation

INSTALLATION

PROCEDURE

1. INSTALL REAR SPOILER SUB-ASSEMBLY

HINT:

When installing a new rear spoiler sub-assembly, heat the luggage compartment door panel and rear spoiler sub-assembly using a heat light.

Heating Temperature

Item

Temperature

Luggage Compartment Door Panel

40 to 60°C (104 to 140°F)

Rear Spoiler Sub-assembly

20 to 30°C (68 to 86°F)

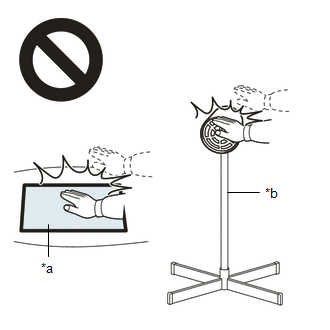

CAUTION:

  • Do not touch the heat light and heated parts, touching the heat light may result in burns.
  • Touching heated parts for a long time may result in burns.

*a

Heated Part

*b

Heat Light

NOTICE:

Do not heat the luggage compartment door panel or rear spoiler sub-assembly excessively.

(a) Clean the luggage compartment door panel surface.

(1) Using a heat light, heat the luggage compartment door panel surface.

(2) Remove any double-sided tape from the luggage compartment door panel.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Using a brush or felt, apply primer or equivalent to the rear spoiler sub-assembly installation area.

NOTICE:

  • Use a clean brush or felt.
  • Do not touch the luggage compartment door panel until the primer has dried.

(c) Remove the release paper from a new rear spoiler sub-assembly.

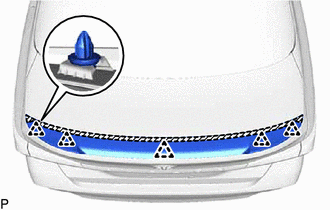

(d) Attach the double-sided tape and engage the 5 clips to install the rear spoiler sub-assembly.

HINT:

Press the rear spoiler sub-assembly firmly to install it.

(e) Install the rear spoiler sub-assembly with the 2 nuts.

Torque:

5.0 N·m {51 kgf·cm, 44 in·lbf}

2. INSTALL LUGGAGE COMPARTMENT DOOR COVER

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

Click here

2. REMOVE REAR SPOILER SUB-ASSEMBLY

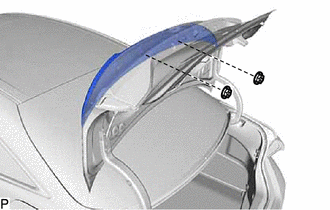

(a) Apply protective tape around the rear spoiler sub-assembly as shown in the illustration.

Protective Tape

(b) Remove the 2 nuts.

(c) Separate the double-sided tape and disengage the 5 clips to remove the rear spoiler sub-assembly.

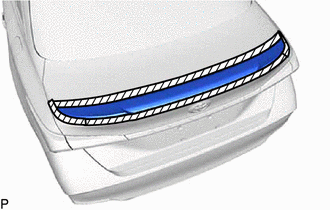

Double-sided Tape

    Removal

    Rear Wheel House Plate
