Toyota Avalon (XX50) 2019-2022 Owners Manual: Head restraints

Head restraints are provided for all seats.

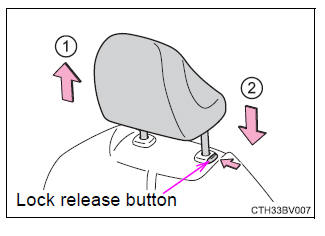

Front seats and rear outboard seats

  1. Up
    Pull the head restraint up.
  2. Down
    Push the head restraint down while pressing the lock release button.

Adjusting the seats

Rear center seat

Head restraints cannot be adjusted or removed.

■Removing the head restraints

Pull the head restraint up while pressing the lock release button.

If the head restraint touches the ceiling, making the removal difficult, change the seat back angle or, if possible, the seat height.

Adjusting the seats

■Installing the head restraints

Front seats

Align the head restraint with the installation holes and push it down to the lock position.

Press and hold the lock release button when lowering the head restraint

Adjusting the seats

Rear outboard seats

Align the head restraint with the installation holes and push it down to the lowest lock position while pressing the lock release button.

Adjusting the seats

■Adjusting the height of the head restraints

Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.

WARNING

■Head restraint precautions Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury.

  • Use the head restraints designed for each respective seat.
  • Adjust the head restraints to the correct position at all times.
  • After adjusting the head restraints, push down on them and make sure they are locked in position.
  • Do not drive with the head restraints removed.

    (However, if a head restraint interferes with installation of a child restraint system, the head restraint can be removed to accommodate the child restraint system)
