PARTS LOCATION

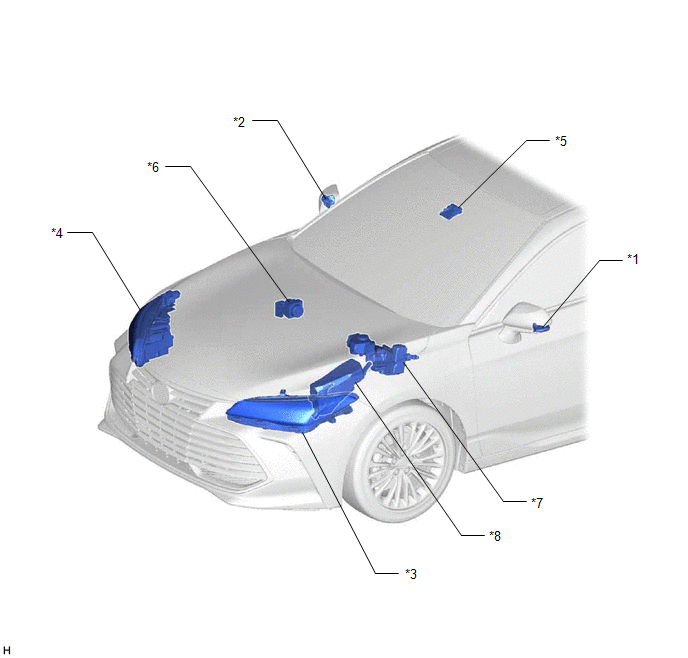

ILLUSTRATION

*1

SIDE TURN SIGNAL LIGHT ASSEMBLY LH

*2

SIDE TURN SIGNAL LIGHT ASSEMBLY RH

*3

HEADLIGHT ASSEMBLY LH

- HEADLIGHT ECU SUB-ASSEMBLY LH

*4

HEADLIGHT ASSEMBLY RH

- HEADLIGHT ECU SUB-ASSEMBLY RH

*5

FORWARD RECOGNITION CAMERA

*6

PARKING BRAKE ECU (BRAKE ACTUATOR ASSEMBLY)

*7

SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

*8

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- H-LP LH RELAY

- H-LP RH RELAY

- H-LP LH FUSE

- H-LP RH FUSE

- DC/DC FUSE

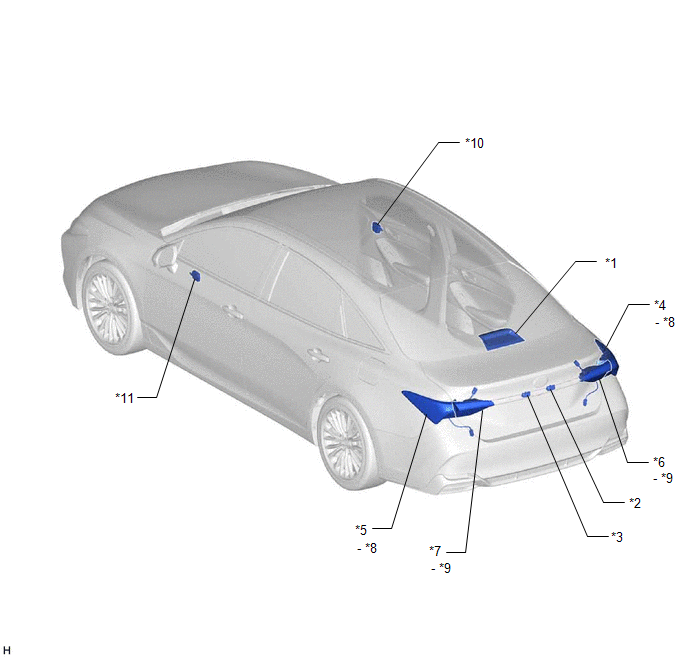

ILLUSTRATION

*1

CENTER STOP LIGHT SET

*2

LICENSE PLATE LIGHT ASSEMBLY RH

*3

LICENSE PLATE LIGHT ASSEMBLY LH

*4

REAR COMBINATION LIGHT ASSEMBLY RH

*5

REAR COMBINATION LIGHT ASSEMBLY LH

*6

REAR LIGHT ASSEMBLY RH

*7

REAR LIGHT ASSEMBLY LH

*8

REAR COMBINATION LIGHT SOCKET AND WIRE

*9

REAR LIGHT CORD

*10

OUTER MIRROR CONTROL ECU ASSEMBLY RH

*11

OUTER MIRROR CONTROL ECU ASSEMBLY LH

-

-

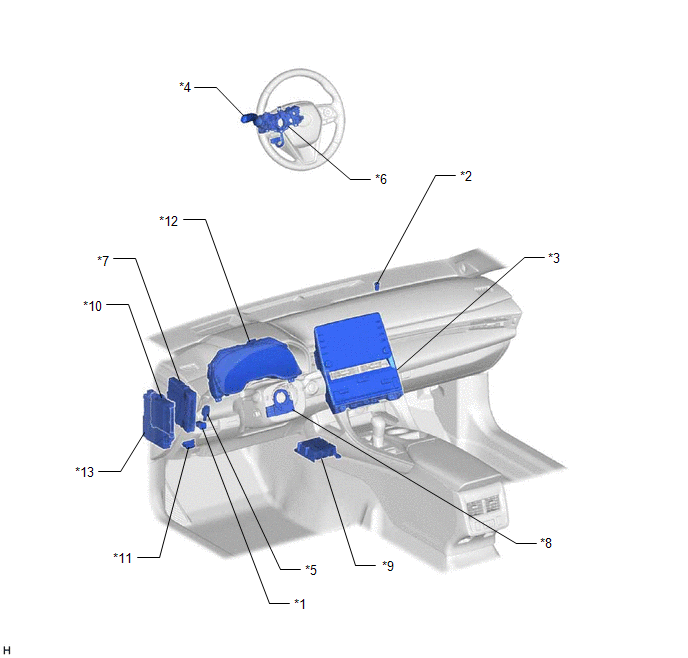

ILLUSTRATION

*1

AUTO HIGH BEAM SWITCH

*2

AUTOMATIC LIGHT CONTROL SENSOR

*3

HAZARD WARNING SIGNAL SWITCH (RADIO AND DISPLAY RECEIVER ASSEMBLY)

*4

TURN SIGNAL SWITCH

*5

STOP LIGHT SWITCH ASSEMBLY

*6

STEERING WHEEL SWITCH HOUSING

*7

HYBRID VEHICLE CONTROL ECU

*8

STEERING SENSOR

*9

AIRBAG ECU ASSEMBLY

*10

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*11

DLC3

*12

COMBINATION METER ASSEMBLY

*13

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- TAIL RELAY

- BKUP LP RELAY

- TAIL FUSE

- BKUP LP FUSE

- ECU-IG1 NO. 3 FUSE

- ECU-B NO. 2 FUSE

- ECU-DCC NO. 2 FUSE

- HAZ FUSE

- METER-IG2 FUSE

- STOP FUSE

-

-
