Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: System Diagram

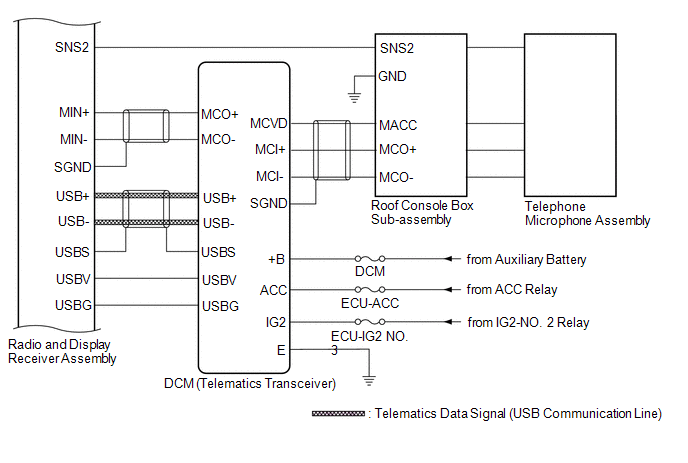

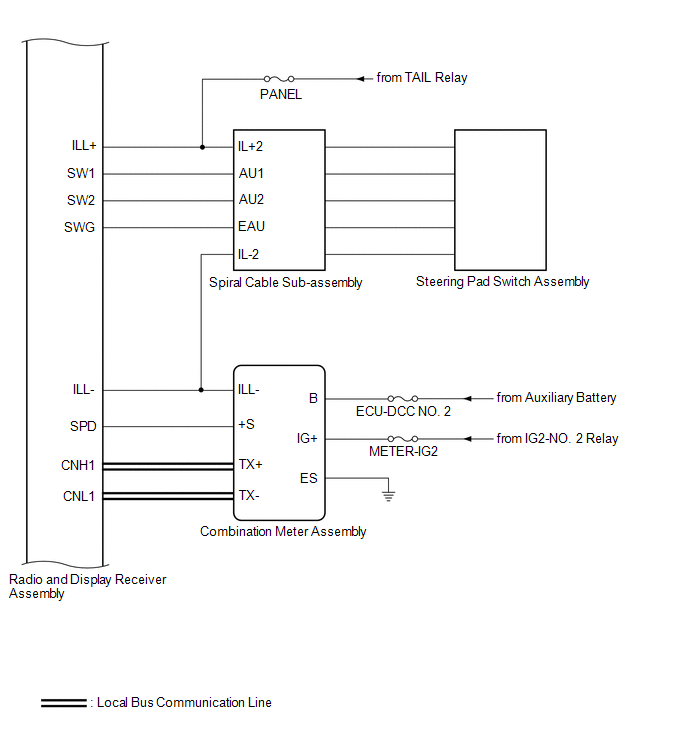

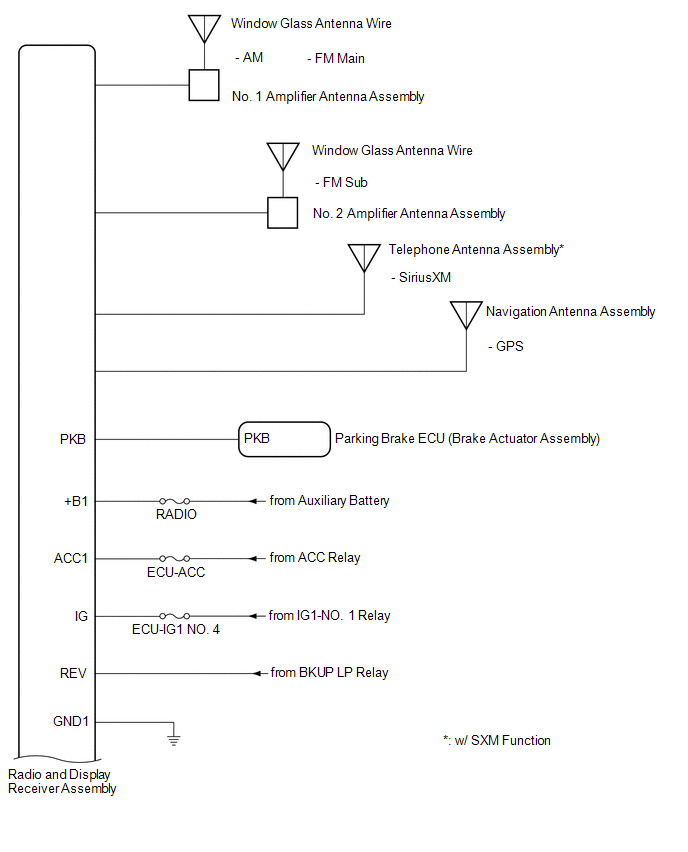

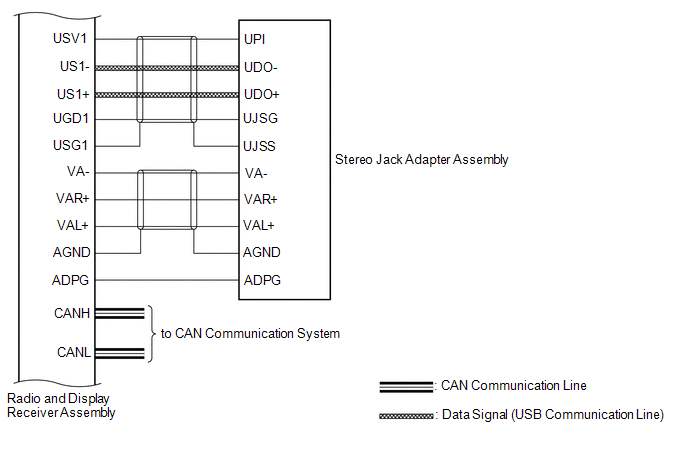

SYSTEM DIAGRAM

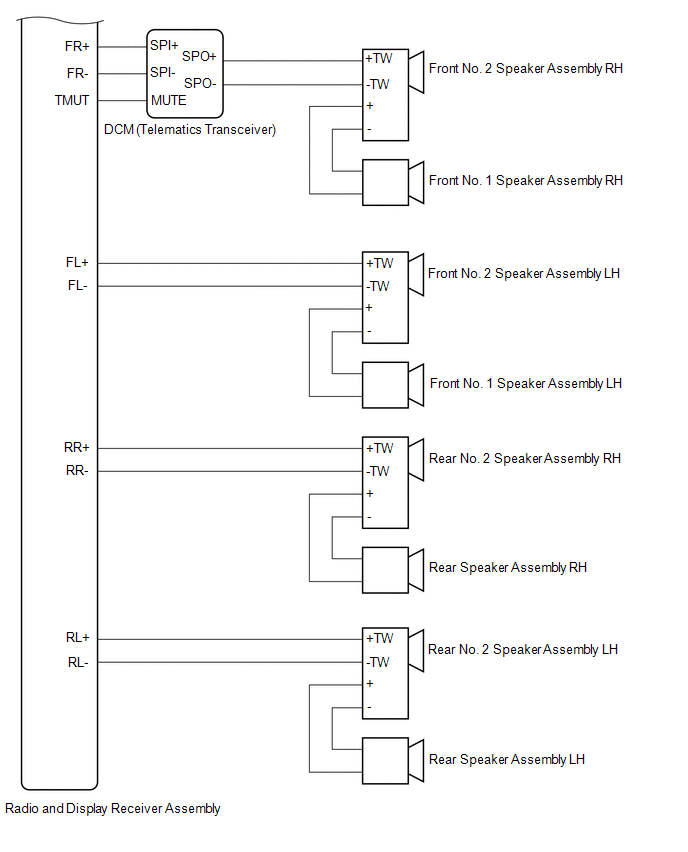

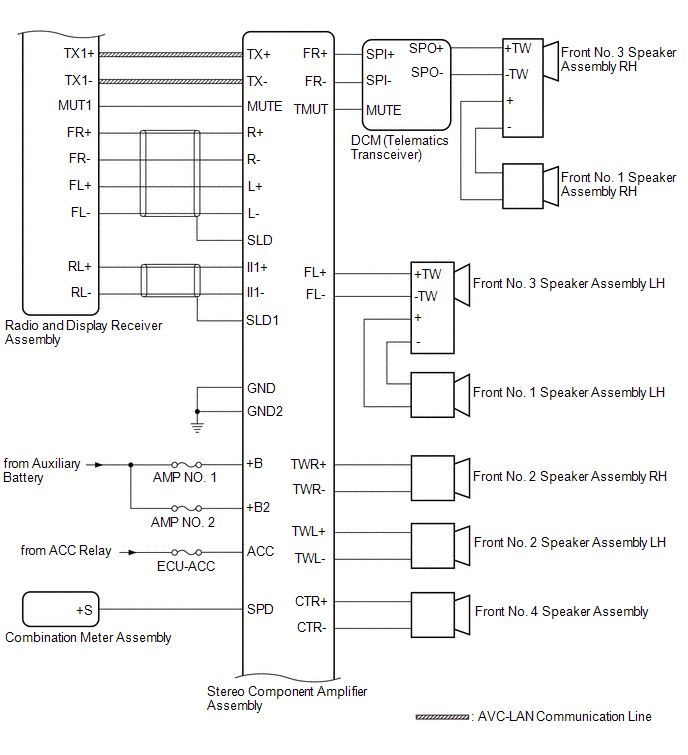

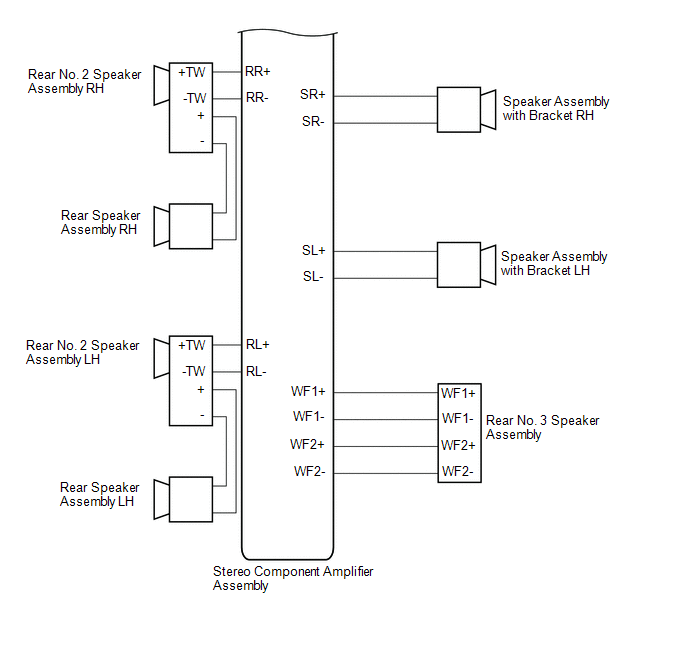

for 8 Speakers for 14 Speakers
    System Description

    Terminals Of Ecu
