Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE SPARE WHEEL COVER ASSEMBLY

Click here

2. REMOVE BAGGAGE HOLDER NET

Click here

3. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

Click here

4. REMOVE REAR FLOOR FINISH PLATE

Click here

5. REMOVE LUGGAGE COMPARTMENT INNER TRIM PAD

Click here

6. REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for RH Side)

for HV Model:

Click here

7. REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER RH (for RH Side)

for Gasoline Model:

Click here

for HV Model:

Click here

8. REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER LH (for LH Side)

Click here

9. REMOVE REAR COMBINATION LIGHT COVER

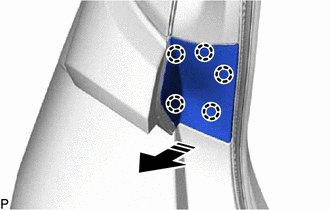

(a) Disengage the 5 claws to remove the rear combination light cover as shown in the illustration.

Remove in this Direction

10. REMOVE REAR COMBINATION LIGHT ASSEMBLY

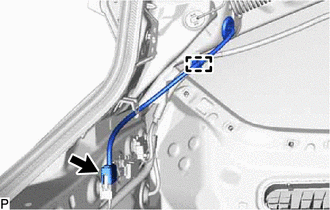

(a) Disconnect the connector.

(b) Disengage the clamp.

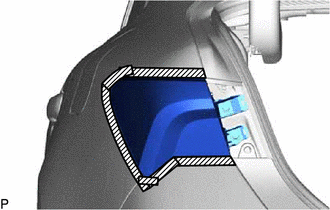

(c) Apply protective tape around the rear combination light assembly as shown in the illustration.

Protective Tape

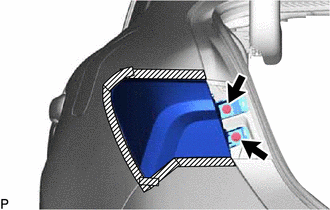

(d) Remove the 2 screws.

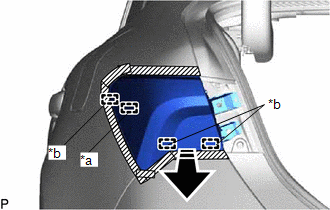

(e) Pull the rear combination light assembly toward the rear of the vehicle as shown in the illustration to disengage the pin and 3 guides and separate the rear combination light assembly.

NOTICE:

To prevent the rear combination light assembly from falling when disengaging the pin and guides, lightly hold the rear combination light assembly.

*a

Pin

*b

Guide

Remove in this Direction

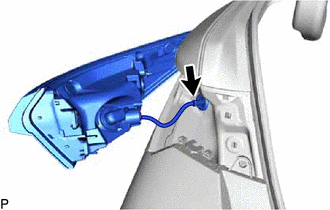

(f) Disengage the grommet to remove the rear combination light assembly.

    Reassembly

    Rear Light Assembly
