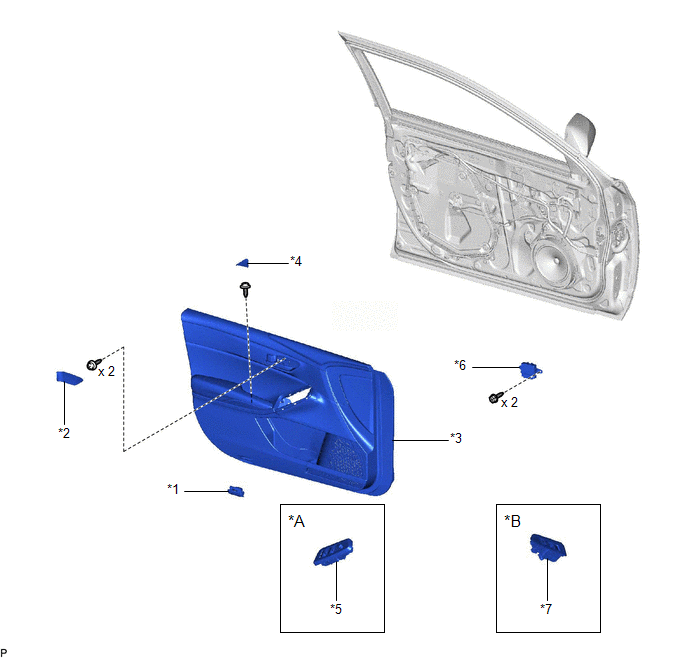

Components COMPONENTS ILLUSTRATION
Installation INSTALLATION CAUTION / NOTICE / HINT HINT:

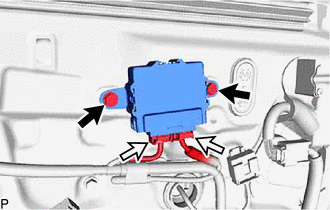

PROCEDURE 1. INSTALL OUTER MIRROR CONTROL ECU ASSEMBLY (a) Connect the 2 connectors. (b) Install the outer mirror control ECU assembly with the 2 screws. 2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY Click here
3. INSTALL COURTESY LIGHT ASSEMBLY Click here 4. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side) Click here 5. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side) Click here 6. INSTALL FRONT DOOR TRIM POCKET COVER Click here 7. INSTALL FRONT DOOR ARMREST COVER SUB-ASSEMBLY Click here Removal REMOVAL CAUTION / NOTICE / HINT HINT:
PROCEDURE 1. REMOVE FRONT DOOR ARMREST COVER SUB-ASSEMBLY Click here 2. REMOVE FRONT DOOR TRIM POCKET COVER Click here 3. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side) Click here 4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side) Click here 5. REMOVE COURTESY LIGHT ASSEMBLY Click here 6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY Click here 7. REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY
(b) Disconnect the 2 connectors to remove the outer mirror control ECU assembly. |
