1. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

(a) With the speaker installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the speaker, no tears on the speaker cone or other abnormalities.

(c) Measure the resistance of the speaker.

Standard Resistance:

for 8 Speakers

Tester Connection

Condition

Specified Condition

1 - 2

Always

3.2 to 4.8 Ω

for 14 Speakers

Tester Connection

Condition

Specified Condition

1 - 2

Always

4.5 to 6.7 Ω

If the result is not as specified, replace the speaker.

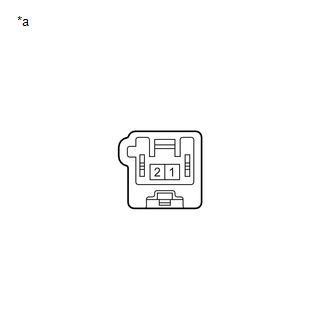

*a

Component without harness connected

(Front No. 1 Speaker Assembly)
